Topdressing is the application of a uniform thin layer of soil or finely granulated organic materials applied over the turf surface. It is used to level the playing field when minor variations or depressions are apparent, help to amend physical soil properties and create a better growing environment for the turf and help reduce thatch. Topdressing smoothes out the surface of the athletic field, but more importantly it fills the aerification holes with amendments to keep these channels open for air and water to move into the root zone. We have Different Types of Top Dresser like walk behind, Tow, Bed mount…

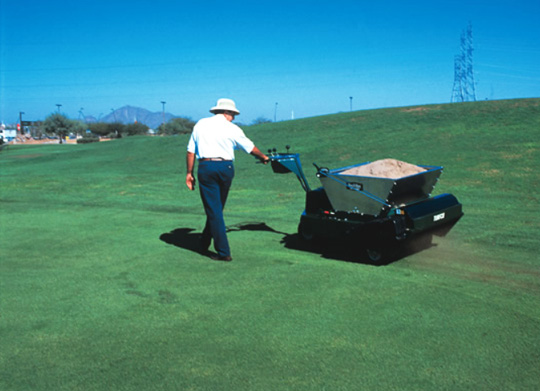

Number one in topdressers since 1961: Unparalleled consistency regardless of ground speed combined with a self-propelled design make the Mete-R-Matic® topdresser vital to your business. Easily maneuver across greens and other turf areas to topdress with any material including compost, sand, peat and crumb rubber. With fingertip access to controls, and designed with a powered brush and patented Chevron® topdressing belt, the Turfco Mete-R-Matic topdresser delivers the most precise spread available.
Light Footprint
Its light footprint is very helpful for new or refurbished greens, reducing the traffic of utility vehicles.
Fingertip Access
Operator controls allow fingertip access to forward, reverse, brakes and throttle.
Patented Chevron Belt
Patented Chevron belt uniformly applies topdressing regardless of moisture content.
Quiet Operation
New plastic guards with insulation for quieter operation.
Engine
5.5 HP (4.04 kW) Honda ® engine with recoil start
Model
F15B, Product Number 85417
Hopper Capacity
11.5 cubic feet (0.33 cubic meter), filled level at top of hopper
Spreading Width
31-1/2" (0.8 m)Top Dressing Speed:Up to 2.5 mph (4 km/h)
Transport Speed
Up to 2.5 mph (4 km/h)
Conveyor Belt
34" wide composition belt with chevron surface and heavy-duty polyester cord
Metering Gate
Fine adjustment to maximum 3" (76 mm) opening
Brush
9" (228 mm) diameter, polypropylene bristle
Controls
Throttle, traction, reverse, brake, engine on/off switch, conveyor drive and metering gate controls all within easy reach of the operator
Drive
V-belt from engine, roller chain and gear drive to conveyor, traction and brush
Wheels & Tires
Five, 13 x 6.50 x 6 rib thread turf tires
Weight
650 Ibs. (295 kg)
Shipping Weight
750 Ibs. (341 kg)
Shipping Dimensions
79" x 48-1/2" x 35-1/2", 77.7 cu. ft. (2.01 m x 1.23 m x 0.9 m, 2.2 cubic meters)
The Toro ProPass™ 200 broadcast style topdresser delivers extremely accurate spread patterns from ultra-light dustings to ultra-heavy aeration hole filling applications without any guesswork. A wireless controller provides the easiest method to set and control the spread functions. Available in both a utility vehicle mounted version and a towed version.
Available Wireless Controller
Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 100 yards (91 metres).
Color Coded Operating System
Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.
Spread Consistency
Evenly apply materials to the turf from 9 ft (2.74 m) to 30 ft (9.1 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.
Twin Spinner Angle
The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.
Walking Beam Suspension
A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.
Wedge Style Tailgate
Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.
Smooth Belt
Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
Versatility
Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.
Vehicle Mount or Tow Models
The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.
Application Rate
Ultra Light to Ultra Heavy
Belt
Single piece, vulcanized, self-tracking (no seams)
Hopper Capacity
21 ft³ (.54 m³) level, 25 ft³ (.71 m³ heaped)
Spreading Width
9 ft (2.7 m) to 30 ft (9.1 m)
Warranty
2 year limited warranty
Storage Stands
Provides an easy means to store your ProPass™ when removing the unit from a truck mounted assembly.
Cross-Conveyor and Swivel Kit
Enhance versatility with a 270-degree swivel cross-conveyor system that can be installed quickly and easily without any tools.
The New Generation ECO 250 applicator was developed based on our own experience as lawn care professionals and also incorporates suggestions from our customers. This spreader integrates features normally found in much larger top dressers into our own proven design.
The ECO 250’s maneuverable four-wheel design
provides better weight distribution and stability. This makes handling heavier products feasible without sacrificing maneuverability or ease of operation.
A wider base frame
improves stability and accommodates a wide conveyor system for increased surface contact.
An extra differential support bracket
has been added in order to handle greater weight.
Levers and Handles
All levers and handles have been re-positioned for ease of use and comfort.
Four tie-down points
Four tie-down points have been integrated into the new design.
Agitator Belt Tensioner System
A quick adjustment agitator belt tensioner system makes it easy to adapt on the go.
Larger Frame
The larger frame gives the hopper a wider live bottom. This feature works together with its steep smooth sides and large rounded corners and edges to eliminate product bridging.
Application Speed
9 cu. ft. per minute / 8 cu. yd. per hour
Application Width
4 to 18 feet
Application Thickness
up to 1/4″
Materials
All grades of sand, Calcined clay, Crumb rubber, Light soil mix, Lime, Most pelletized products, Pulverized soils, Sand, Screened compost, Screened loam, Unlimited blends of all products
Hopper Capacity
11.5 cu. ft. load
Adaptive Components
Chain-Driven Agitator Kit, Long Agitator Kit
Axle
Peerless
Broadcasting Drive Mechanism
Dual Peerless gear boxes
Broadcasting Mechanism
Dual reverse spin disks
Engine
5.5 HP Honda GX 160
Ground Speed
Up to 5 mph
Weight Distribution Design
Four-wheel design
Empty Weight
320 lbs
Dimension (L/W/H)
78 x 34 x 40 in
Certification
CE Certified
