Toro Golf Sprinklers are with exclusive features such as SMART ACCESS®, TruJectory™ adjustment, dual trajectory main nozzle, part/full circle drive, ratcheting riser etc specific to the models selected - allows you to put water precisely where you want it for maximum distribution uniformity. also available, more economical body package specifically designed for block systems.
With the industry’s largest selection of high performance nozzles and Trujectory® adjustment the New INFINITY® 35-6/55-6 Series with SMART ACCESS® allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
TruJectory™ Adjustment of the main nozzle—24 positions from 7°-30°
From 7-30 degrees this patented feature in 1 degree increments puts water where you want it for maximum distribution uniformity. Adjust from the top of the sprinkler in seconds, wet or dry. This flexibility lets you tackle every obstacle on the course; wind, trees, bunkers, mounds and more.
The Industries Largest and Most Flexible Nozzle Selection
With the industries largest selection of nozzles Toro sprinklers allow you to put the precise amount of water exactly where you need it.
Indestructible Stainless Steel Valve Seat
Never gets damaged; never requires replacement; lower cost of ownership
Ratcheting Riser
For fine-tuning arc adjustment after installation
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
GDC 2-wire module
accessible from the top Allows for GDC module retrieval, system troubleshooting and system repairs without digging!
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!
Radius
INF35-6: 42' - 92'
INF55-6: 52' - 100'
Flow
INF35-6: 7.1 - 45.3 GPM
INF55-6: 13.9 - 61.1 GPM
Precipitation Rate
INF35-6: Min = .37"/hr; Max = .53"/hr
INF55-6: Min = .43"/hr; Max = .60"/hr
Trajectory
24 position from 7° - 30° in 1° increments
Recommended Operating Pressure
65-100 PSI (4.5 - 6.9 BAR)
Minimum Operating Pressure
40 PSI (2.8 BAR)
Inrush
60 Hz, 0.12 Amps
Holding
60 Hz, 0.10 Amps
Inlet
1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Pop-Up Height
3 1/4" INF55-6; 5.13 lbs
Body Height
INF35-6: 10"
INF55-6: 11 3/8"
Weight
INF35-6: 4.31 lbs
INF55-6; 5.13 lbs
Cap Diameter
SMART ACCESS cover and compartment
INF35-6: 7 5/8
INF55-6: 7 5/8
The New INFINITY® 35/55 Series with SMART ACCESS® features a dual trajectory main nozzle that provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the part/full circle drive and ratcheting riser allows you to adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no additional parts required.
Arc adjustment—40°-330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
GDC 2-wire module
accessible from the top Allows for GDC module retrieval, system troubleshooting and system repairs without digging!
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!
Radius
INF35: 43' -53'
INF55: 55' - 92'
Flow
INF35: 8.2 - 47 GPM
INF55: 14.1 - 61.3 GPM
Precipitation Rate
INF35: Minimum - .41"/hr; Maximum - .45"/hr
INF55: Minimum - .46"/hr; Maximum - .58"/hr
Trajectory
25° & 15°
Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One - 40°-330° and 360°
Recommended Operating Pressure
65-100 PSI
Minimum Operating Pressure
40 PSI
Inrush
60 Hz, 0.30 Amps
Holding
60 Hz, 0.20 Amps
Inlet
INF35: 1" Acme
INF55: 1 1/2" Acme
Pop-Up Height
3 1/4"
Body Height
INF35: 10"
INF55: 11 3/8"
Body Diameter
SMART ACCESS® cover and Compartment
INF35: 7 5/8"
INF55: 7 5/8"
Weight
INF35: 4.26 lbs.
INF55: 5.08 lbs.
The New INFINITY® 34/54 is Toro’s Premium full-circle golf sprinkler series with SMART ACCESS®. The dual trajectory main nozzle provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the consistency of the constant velocity full circle drive ensures even water application across the coverage area every time you water.
The Industries Largest and Most Flexible Nozzle Selection
With the industries largest selection of nozzles Toro sprinklers allow you to put the precise amount of water exactly where you need it.
Indestructible Stainless Steel Valve Seat
Never gets damaged; never requires replacement; lower cost of ownership
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
GDC 2-wire module
accessible from the top Allows for GDC module retrieval, system troubleshooting and system repairs without digging!
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!
Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
Radius
INF34: 52' - 91'
INF54: 52' - 99'
Flow
INF34: 13.0 - 46.9 GPM
INF54: 13.2 - 61.8 GPM
Precipitation Rate
INF34: Min = .33"/hr; Max = .55"/hr
INF54: Min = .33"/hr; Max = .61"/hr
Trajectory
25° & 15°
Arc
Full Circle
Recommended Operating Pressure
65-100 PSI
Minimum Operating Pressure
40 PSI
Inrush
60 Hz, 0.12 Amps
Holding
60 Hz, 0.10 Amps
Inlet
INF34: 1" Acme
INF54: 1 1/2" Acme
Pop-Up Height
3 1/4"
Body Height
INF34: 10"
INF54: 11 3/8"
Body Diameter
SMART ACCESS® cover and compartment
INF34: 7 5/8"
INF54: 7 5/8"
Weight
INF34: 4.22 lbs.
INF54: 5.04 lbs.
Eliminate sprinkler interference with the outcome of the game forever! Toro’s INFINITY Stealth Kits can be installed onto any INFINITY sprinkler allowing turf growth directly atop the sprinkler to eliminate the hard surface bounce should a golf ball hit it. The seamless turf appearance adds to the beauty of the course and improves labor efficiency by minimizing trimming efforts around the sprinklers.
With the industry’s largest selection of high performance nozzles and TruJectory™ adjustment the New FLEX800™ 35-6/55-6 Series allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
TruJectory™ Adjustment of the main nozzle—24 positions from 7°-30°
From 7-30 degrees this patented feature in 1 degree increments puts water where you want it for maximum distribution uniformity. Adjust from the top of the sprinkler in seconds, wet or dry. This flexibility lets you tackle every obstacle on the course; wind, trees, bunkers, mounds and more.
Arc adjustment—40°-330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
The Industries Largest and Most Flexible Nozzle Selection
With the industries largest selection of nozzles Toro sprinklers allow you to put the precise amount of water exactly where you need it.
Spike Guard™ Solenoid
With its 20,000 volt lightning rating, the industries highest, the Spike Guard™ solenoid has virtually eliminated the need for solenoid replacement in high lightning environments. And with 1/2 the amperage draw of traditional solenoids you can run twice as many sprinklers simultaneously, reduce the cost of wiring during initial installation or increase the distance from controller to sprinkler.
Indestructible Stainless Steel Valve Seat
Never gets damaged; never requires replacement; lower cost of ownership.
Slow closing piston valve eliminates pressure surges
Slow closing piston valve eliminates the high pressure surges that can damage the sprinkler, valves and piping systems.
Selectable pilot valve
Allows pressure regulation adjustment at the sprinkler to 50, 65, 80 or 100 psi (3.4, 4.5, 5.5 or 6.9 bar).
Removable rock screen
Allows you to flush debris out of the piping system from the top of the sprinkler
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Effluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.
Ratcheting Riser
For fine-tuning arc adjustment after installation.
Back Nozzle Capable
Allows watering directly behind a part circle sprinkler
Electric Valve-In-Head Solenoid-835/855
Electric Valve-in-head solenoid 24V ac, 50/60 Hz
Radius
42'-100' (12.8 - 30.5 m)
Flow
7.1-61.1 GPM (27 - 231 LPM)
Precipitation Rate
FLX35-6: Min = .37"/hr (.9 cm); Max = .53"/hr (1.3 cm) FLX55-6: Min = .43"/hr (1.1 cm); Max = .60"/hr (1.5 cm)
Trajectory
7°-30°
Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One - 40°-330° and 360°
Recommended Operating Pressure
65-100 PSI (4.5 - 6.9 BAR)
Minimum Operating Pressure
40 PSI (2.8 BAR)
Inrush
60 Hz, 0.12 Amps
Holding
60 Hz, 0.12 Amps
Inlet
1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Pop-Up Height
3 1/4" (8.3 cm)
Body Height
FLX35-6: 10" (25.4 cm); 855S: 11 3/8" (28.9 cm)
Body Diameter
FLX35-6: 6 1/2" (16.5); 855S: 7 1/2" (19.1 cm)
Weight
FLX35-6: 2.98 lbs. (1.4 kg); 855S: 3.70 lbs. (1.7 kg)
The New FLEX800™ 35/55 Series features a dual trajectory main nozzle that provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the part/full circle drive allows you to adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no additional parts required.
Available in 1" (2.5 cm) inlet (DT35) and 1 1/2" (3.8 cm) inlet (DT55)
ACME, NPT and BSP threads
Conversion Assemblies available to economically upgrade your existing Toro system
Conversion Assemblies available to economically upgrade your existing Toro system
Arc adjustment—40°-330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Effluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.
Radius
43'-92' (13 - 28 m)
Flow
8.2-61.3 GPM (31 - 232 LPM)
Precipitation Rate
FLX35: Min = .41"/hr (1 cm); Max = .45"/hr (1.1 cm) FLX55: Min = .46"/hr (1.2 cm); Max = .58"/hr (1.5 cm)
Trajectory
25° & 15°
Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One - 40°-330° and 360°
Recommended Operating Pressure
65-100 PSI (4.5 - 6.9 BAR)
Minimum Operating Pressure
40 PSI (2.8 BAR)
Inrush
60 Hz, 0.30 Amps
Holding
60 Hz, 0.20 Amps
Inlet
1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Pop-Up Height
3 1/4" (8.3 cm)
Body Height
FLX35: 10" (25.4 cm); FLX55: 11 3/8" (29 cm)
Body Diameter
FLX35: 6 1/2" (16.5 cm); FLX55: 7 1/2" (19 cm)
Weight
FLX35: 2.98 lbs. (1.4 kg); FLX55: 3.70 lbs. (1.7 kg)
The New FLEX800™ 34/54 Series with dual trajectory main nozzle provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the consistency of the constant velocity full circle drive ensures even water application across the coverage area every time you water.
Available in 1" (2.5 cm) inlet (DT35) and 1 1/2" (3.8 cm) inlet (DT55)
ACME, NPT and BSP threads
Conversion Assemblies available to economically upgrade your existing Toro system
Conversion Assemblies available to economically upgrade your existing Toro system
Constant Velocity Full-circle Drive
Provides consistant rotation speeds from sprinkler to sprinkler.
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Effluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.
Radius
52'-99' (15.8 - 30.2 m)
Flow
13.0-61.8 GPM (49 - 234 LPM)
Precipitation Rate
FLX34: Min = .33"/hr (8 mm); Max = .55"/hr (1.4 cm) FLX54: Min = .33"/hr (8 mm); Max = .61"/hr (1.5 cm)
Trajectory
25° & 15°
Arc
Full Circle
Recommended Operating Pressure
65-100 PSI (4.5 - 6.9 BAR)
Minimum Operating Pressure
40 PSI (2.8 BAR)
Inrush
60 Hz, 0.30 Amps
Holding
60 Hz, 0.20 Amps
Inlet
1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Pop-Up Height
3 1/4" (8.3 cm)
Body Height
FLX34: 10"; FLX54: 11 3/8"
Body Diameter
FLX34: 6 1/2" (16.5 cm); FLX54: 7 1/2" (19.1 cm)
Weight
FLX34: 2.98 lbs. (1.4 kg); FLX54: 3.70 lbs. (1.7 kg)
The FLEX800™ B Series golf sprinkler family brings you all the great features and performance of the FLEX800 35-6, 34 and 35 Series sprinklers in a more economical body package specifically designed for block systems. With its rugged golf body design, small exposed surface diameter, flanged body for stability and check valve these sprinklers are perfect for every golf application.
Trajectory Adjustment
835B with tru-jectory adjustment from 7°-30° and DT models with dual settings of 25° or 15° for radius reduction and obstacle avoidance
The industry's largest selection of precision nozzles from 25' to 90' (7.6 m to 27.4 m) radius applications
Allows you the flexibility to use one sprinkler to cover a large variety of radius and flow requirements
Adjustable part circle and full circle performance in one
One sprinkler for every location on the course-these unique sprinklers can be a full circle
Small exposed diameter
Minimizes the appearance of the sprinkler to maximize the beauty of the landscape
Flanged cap design
Flanged cap installs below grade to stabilize the body position and maintain optimum nozzle performance
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Effluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.
Back Nozzle Capable
Allows watering directly behind a part circle sprinkler
Radius
42'-95' (12.8 - 29 m)
Flow
7.1-56.3 GPM (26.9 - 213 LPM)
Precipitation Rate
835B: .34"/hr -.56"/hr DT35B: .37"/hr - .67"/hr DT34B: .33"/hr - .59"/hr
Trajectory
7°-30°/25° & 15°
Arc
Use "Arc" values: Full Circle; Part-circle Adjustable; Part/Full circle in One - 40°-330° and 360°
Recommended Operating Pressure
50-100 PSI (3.4 - 6.9 BAR)
Inlet
1" (2.5 cm) NPT, BSP, Acme
Pop-Up Height
3 1/4" (8.3 cm)
Body Height
8.5" (21.6 cm)
Body Diameter
6" (15.2 cm)
Weight
2 lbs. (.9 kg)

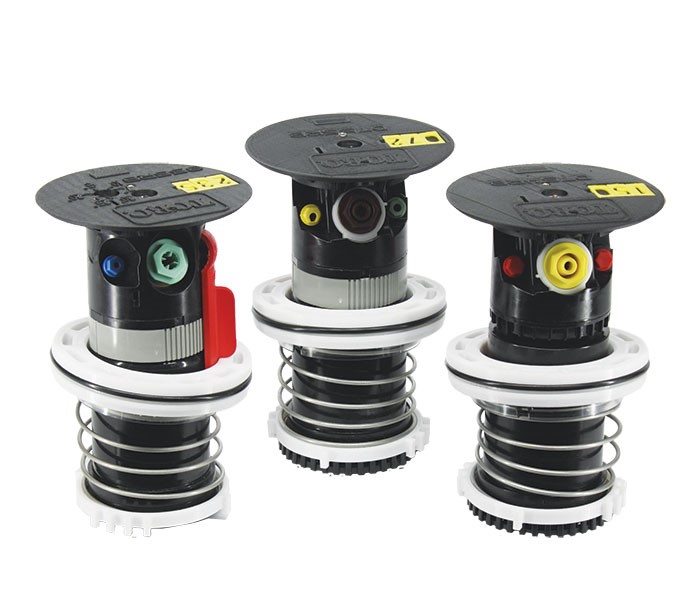

The Toro FLEX800™ R Series Conversion Upgrades enable customers with existing Rain Bird® Eagle™ 900 and 1100* Series sprinklers to upgrade to Toro’s industry leading sprinkler technology. The benefits of upgrading include the patented TruJectory™ adjustment, full and part circle in the same sprinkler, the ability to ratchet the riser and clutch the nozzle base, and an extra 1½” pop-up height.
Trajectory Adjustment
Trajectory adjustment of the main nozzle for radius reduction and obstacle avoidance
Adjustable part/full circle or full circle only models available
Adjustable part circle from 40-330 degrees and true full circle - 855RB & DT55RB Full circle only - DT54RB
Ratcheting Riser
Ratcheting riser allows riser positioning without riser removal
Back Nozzle Capable
Back nozzle capable (855RB & DT55RB only)
Adds 1.5" (3.8 cm) Of Pop-Up Height
3.25" (8.3 cm) pop-up clears the tall grass
Recommended Operating Pressure
60-100 psi (4.1 - 6.9 bar)
Pop-Up Height
3.25" (8.3 cm)
Subsurface irrigation provides water directly to the root zone to ensure maximum utilization, minimizing waste from evaporation and surface runoff. These kits provide everything you need to set up a tee box, bunker system, lake perimeter or anywhere else a low volume subsurface system applies.
