Blowers and sweepers are common Equipments which are used for cleaning aeration cores off playing surfaces, removing leaves in the fall, or even maintenance of hard-surface parking lots around the clubhouse and other buildings. Blowers can be handheld gas blowers for removing debris from small areas, backpack blowers that have a higher volume of air for slightly larger areas, push blowers, pull-behind blowers, or tractor-mounted blowers for removal of debris from large areas.
The Debris Blower 600 has a powerful 36-inch (91.4 cm) impeller that produces high airflow for many jobs. Bi-directional airflow control makes it easy to move the debris exactly where you need it.
Turf Protection
Skid plate and rear turf roller provide protection from turf damage.
Increased Productivity
Simple bi-directional airflow control from the operator's seat makes quick work of moving debris exactly where you need it, pass after pass.
Fan
36" (91.4 cm) diameter
Fan Speed
1173 rpm@ 540 PTO input
Height
46 inches (116.8 cm)
Height Adjustment
0 - 1.5" (0 - 3.8 cm) by .5" (1.3 cm) increments
Length
49 inches (124.5 cm)
Weight
500 lbs.(226.8 kg)
Width
59 inches (149.9 cm)
The Pro Force™ debris blower provides greater air volume flow than any single nozzle turbine-type debris blower currently available. A wireless RF remote provides the capability to start and stop the engine, adjust engine throttle up and down for low to high RPM range of operation, and rotate the nozzle 360 degrees – all from the operator’s seat in a Toro® Workman® or similar utility vehicle. This blower delivers superior productivity and greater efficiency in jobs ranging from cleaning cart paths and other maintained paved areas, to blowing grass clippings, aeration cores or chaff, or other organic debris.
Engine Power
24.6 hp (18.3 kw) Kohler® Engine
Wireless Remote Control
Start or stop the engine of the blower for complete operational control. Adjust engine throttle up and down for high to low RPM range of operation. Rotate the nozzle 360 degrees in either direction.
Efficient Turbine-type Fan Assembly Design
Greater air flow to move debris further and finish the job faster.
Durable Nozzle
Single piece rotomolded plastic nozzle is more resistant to damage and is more durable for lower repair costs and less downtime.

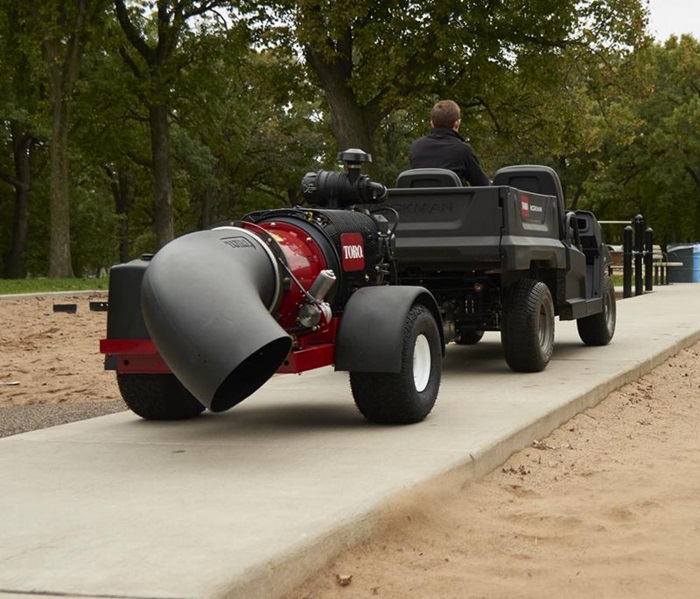

Rugged Construction
Rugged construction, including 1/4" (6 mm) steel frame, provides years of trouble-free service.
Electronic Governor
Coupled with functionality of wireless remote control, the Kohler® electronic governor allows the operator to have precise engine speed control.
Fully Enclosed Exhaust System
Muffler enclosed in protective cage for increased operator safety.

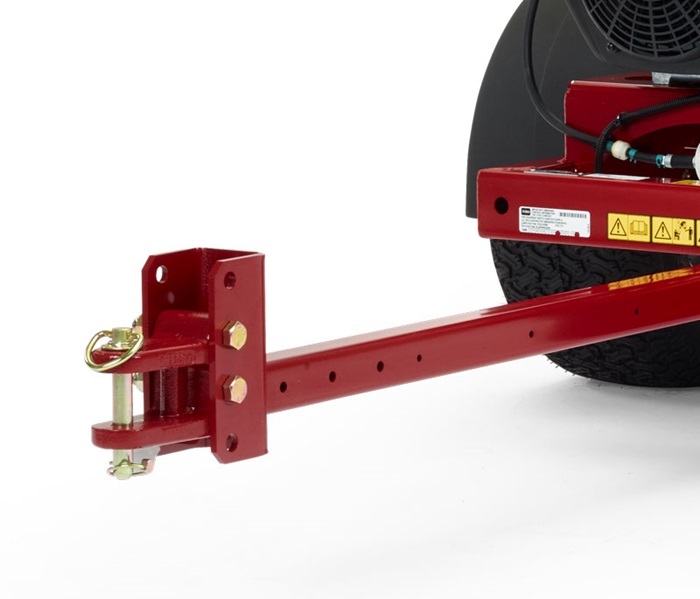

Heavy-Duty Trailer & Tow Hitch
Height and length of tow hitch are adjustable to accommodate different towing utility vehicles.
Air Flow
In independent 3rd party testing, the Pro Force™ demonstrated greater CFM, or air volume flow, than any single nozzle turbine-type debris blower currently available.
Engine
24.6 hp (18.3 kw) twin cylinder air-cooled Kohler® Command Pro® with electronic governor
Fan
Axial flow
Height
33 inches (83.8 cm)
Length
79 - 115 inches (200.7 - 292.1 cm) from adjustable tow hitch to nozzle outlet
Nozzle Type
Impact resistant plastic with 13" (33 cm) outlet diameter
Tires
20 x 10-8, 4 ply turf tire
Warranty
2-year or 1,500 hour manufacturer's limited warranty
Weight
475 lbs. (215.5 kg)
Width
48 inches (121.9 cm)
Wireless RF Controller
Engine start, Engine stop, Engine speed, Nozzle directional control
Faster than traditional methods of collecting traditional aeration cores and other organic debris. Brush height adjustment accommodates a variety of turf conditions.
Adjustable Roller Height
The roller height is adjustable to customize for specific turf applications.
Floating Brush Housing
The exclusive floating brush housing on the Pro Sweep rotates from side to side and front to back, allowing the sweeper to collect cores on uneven terrain.
Wireless RF Remote Control
Only the Pro Sweep comes with a handheld wireless remote that lets you control sweeping and dumping operations with the touch of a button. It also lets you move the sweeper from tow to offset position, or stop power completely in the case of an emergency.
High-Lift Dump
The high-lift dump provides the ability to dump all the cores easily into the bed of a Toro Workman or trailer and empty the hopper completely.
Pivoting Sub-Frame
The pivoting sub-frame allows you to maintain positive tongue weight and gives you better traction even when the hopper is filling up.
Hydraulic Offset
The standard hydraulic offset allows you to move the sweeper from the hydraulic position to the collection position.
Windrow Blade
The windrow blade directs cores away from the tire so they wont be crushed.
Power Supply
Ulitity vehicle with 8 gpm (30 LPM) @ 2000 psi (138 Bar)
Sweeping Width
52 inches (132 cm)
Hopper Capacity
25 cubic feet (.7 cu. m.)
Collection System
Hydraulic powered rotary brush
Speeds
Forward sweeping speed 0-4 mph (0-6.4 km/h), infinitely variable (recommended speed 3 mph (4.8 km/h). Forward transport speed with hopper in transport down position 0-15 mph (0-24 km/h).
Roller
6" (15.2 cm) diameter full-width roller directly behind rotary brush. Adjustable height.
Tires
26.5 x 14-12 (67 cm x 36 - 31 cm)
Weight
1,512 lbs. (686 kg)
Warranty
2 year limited warranty
Height
68 inches (173 cm)
Length
145 inches (368 cm)
Width
87 inches (221 cm)
Adjustable Jack Stand
Secure the Pro Sweep on this sturdy stand when not in use.
Tire Scraper Kit
Improve traction by keeping tires clean from dirt and mud.
Brake Kit
Wheel brakes provide extra footing on uneven terrain.
Leaves, clippings, litter, pine needles don't stand a chance with Rake-O-Vac®. The Toro® Rake-O-Vac® provides the only combination of precision pickup and powerful vacuum in one sweeper. A premier performer for premier results in wet or dry conditions.
Flex Tip Reel
The Flex Tip Reel has six rows of flexible nylon teeth supported by eleven spring loaded sets that provide the "kick" for an extremely clean pickup. They work like fingers to gently lift debris, wet or dry, then vacuum it into the hopper.
Capacity
A large capacity hopper of 4.75 cubic yards (3.6 cubic metres) provides the ability for large collection before needing to dump.
Drive System
Belt
Hopper Capacity
4.75 cu. yd (3.6 cu. m) Hopper Capacity
Power Supply
23hp (17.1kW) Kohler® Command Pro Engine
Weight
2980 lbs. (1356kg)
Warranty
2 year limited warranty
Width
61" (1.5 m) Working Width
The Toro Versa-Vac™ tackles debris management challenges and meets your collection needs. The large capacity hopper makes even the biggest clean-up job simple. For operator ease, the deck and trailer operate hydraulically from convenient seat controls. Use the proven rubber finger deck for effective sweeping, then switch to the combination deck and start verticutting for overseeding, core pulverization, or de-thatching.
Rubber Finger Deck
The rubber finger deck quickly and easily removes leaves, twigs, pine needles, clippings and other debris from turf surface.
Versatility
The innovative design allows for quick deck changes and removal for servicing. In addition, the optional hand held hose provides even more versatility to use the machine for debris clean-up in tight areas.
Drive System
Belt drive
Hopper Capacity
Volume 6.5 cubic yards (5 cu. m.)
Power Supply
35 PTO hp or more turf tractor
Warranty
2 year limited warranty
Weight
2,300 lbs. (1043.3 kg)
Width
72" (182.9 cm)
Optional Hand-held Hose
Optional hand held hose allows for debris removal from fence lines, shrub areas and other tight spaces.
Optional Combination Deck
The combination deck lets you verti-cut, core pulverize or deep de-thatch and vacuum the debris away in one-pass.
