The reel mowers are preferable on sports fields. A reel mower has several rotating blades, paired with a bed knife - is usually fixed at the base of the rotating cylinder between the wheels. The rotating blades rotate towards the stationary back blade, gathering up loose stalks of grass as they turn through their arc. When the back blade brushes against the spinning blades, it cleanly cuts any grass or weeds caught in between. Using reel mowers for any cutting other than sports fields is not wise because any rocks or debris will quickly dull the cutting surfaces, and sharpening the reel blades can be expensive, requiring special equipment and skills.
Toro’s new line of fixed-head walk-behind greensmowers have been completely re-engineered to bring each operator and greensmower into perfect harmony with one another. Multiple innovations – starting with an industry-first telescoping handle – come together to deliver unparalleled cut quality and consistent playability on each and every green. The modular design also makes the Greensmaster 1021 mowers easier than ever to maintain, saving significant time and money and lowering the total cost of ownership.
Proven Honda GX 120 Engine
3.5 HP (at 3600 RPM) Honda engine with ample power for cutting and accessorizing.
Telescoping Handle
Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.
Handle Isolation Mounts
Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.
Dual Function Bail
A single bail combines safety and ease-of-operation. Convenient operation allows the mower to slow down or come to a full stop during turn-arounds without disengaging traction to line up for next mowing pass. Also ideal when using turn-around mats to preserve collar health.
Reel Engagement Lever
Convenient, easy to reach location to engage reel from the operator position.
Easy-Reach Adjustable Throttle
All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.
Hi-Lo Clip Rate Knob
Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.
Standard or Interlaced Grooming
Numerous quick-change options and accessories are available to help customize the cut and aftercut appearance.
Durable Gear Drive Transmission
Provides long life and best-in-class transmission durability. Lubricated for life, no grease points.
Detachable DPA Cutting Units
Change cutting units in just a few minutes! Easily choose between an 8, 11 or 14 blade EdgeSeries™ reel cutting unit configuration. Simply unbolt and replace an entire cutting unit for service or a simple exchange - to avoid costly down time.
Modular Sub-Assembly Design
Make repairs simple and quick. The engine , transmission, drum or cutting unit sub-assemblies can be easily removed for timely and cost effective replacement or repair.
Simple Conversion from Greens to Tees
The innovative swing axle design can quickly convert the machine from a Greens to a Tee mower by keeping the bedknife cutting edge in an optimal position for the respective cutting height and the handle location in the correct ergonomic position.
Traction Release Lever
Disengage the traction with a simple lever twist. Getting around the shop has never been easier!
Onboard Back-Lapping Option
The entire Greensmaster 1000 Series fleet can be back-lapped simultaneously without additional motors or bench tools. (Available on the GR 1021 and 1026 only).
Engine
Honda® gas engine 3.5 HP (2.6 kw) @ 3600 RPM
Mowing Speed
2.0 to 3.5 mph (3.2 to 5.6 km/h)
Cutting Width
18"-26" (46-66cm)
Height of Cut
0.06 - 1.25" (1.524 - 31.75 mm)
Number of Blades
8-blade, 11-blade, and 14-blade cutting units available
Drive System
Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Warranty
Two-year limited warranty
Certification
Designed in accordance to applicable ANSI and CE specifications.
Weight
210-240 lbs (95.2-108.8 kg)
The Greensmaster 3150-Q and 3250-D are distinguished for their field-proven performance and exceptional quality of cut. Equipped with patented DPA cutting units for a superior cut and minimal maintenance, convenient controls for easy operation, and ample power to handle any application–it’s no wonder these classic models have been trusted over the years to deliver the performance golf courses demand with a putting surface that exceeds expectations.
DPA Cutting Units
The most advanced cutting unit in the industry:
* Only two adjustments
* Superior height-of-cut retention
* No daily greasing (stainless steel bearings)
* Consistent cutting edge regardless of reel wear (patented)
* Smallest bedknife increment adjustments .007inch (.178mm)
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Perfect Triangle Wheel Stand Design
The Triangle Wheel Stand places the rear wheel track within the radius of the front wheel, which prevents accidentally dropping the rear wheel into a nearby sand bunker while making the turn for the next mowing path.
Maintenance Ease
All components, especially those that require daily inspection and routine maintenance, are conveniently located for servicing. The Greensmaster® 3250 has fewer hydraulic lines and connectors. All hydraulic components are positioned for easy visual inspection.
Safe Operation
The placement of the center cutting unit, located between the the front traction wheels, along with the front center basket removal, allows a low mounting design of the transmission and engine. This lowers the center of gravity, giving the machine much higher hillside stability.
Safety Interlock System
Toro's riding greens mowers are equipped with safety interlock systems. Machine cannot be started if the implement or traction is engaged. Machine can only be started if brake is engaged and operator is seated. Reels cannot be operated in transport speed or without operator in the seat.
Leak Detection
The dependable Turf Guardian™ leak detection technology alerts the operator if a leak occurs. Optional on the Greensmaster® 3250.
Engine
18hp (13.4) Briggs & Stratton® gas engine or 24.8 hp (18.5 kW) Kubota® diesel engine
Fuel Capacity
up to 7 gal (26.5 L)
Mowing Speed
2 - 5 mph (3.2 - 8 kph)
Transport Speed
0 - 8.8 mph (14.4 kph)
Cutting Width
59" (1.5m)
Warranty
2 year limited warranty
Groomers
Groomers vertically cut into the turf canopy to reduce thatch and stand grass blades for a crisp, clean cut. Select between carbide tipped or austempered steel groomer blades or stiff or soft grooming brush
Light Kit
Two in front and one in rear enhance visibility in low light conditions.
Three-Wheel Drive
Series Parallel system that never allows one wheel to slip.
Off-Greens Kit (Anti-bobbing)
Assures even cutting in soft turf at higher height of cut.
Greens Cutting Unit Rollers, Scrapers, Bedknives
Toro offers a wide variety of accessories to customize the cutting units to suit your needs and work the best in your conditions.
Rotating Rear Roller Brush
Cleans rear roller of grass buildup to prevent leaving clumps on your turf.
Thatching Reel
Vertically cuts into turf to reduce thatch and control horizontal grain growth. Contains tungsten, carbide tipped dynaBLADES with a durable tooth profile for extremely effective dethatching.
Greens Tri-Roller Kit
Used to roll greens and smooth surface of turf for an improved after cut appearance.
The Reelmaster® 3100 is a revolutionary triplex mower designed for superior traction and cutting unit performance on all types of turf. The optional Sidewinder® cutting unit control system can be shifted right and left, on the fly, to vary the tire tracks. A powerful Kubota® 21.5 hp (16 kW) engine and the Series/Parallel 3WD traction drive system provide the power and traction to get the mowing job done quickly. The operator area is designed for optimal operator view and all day mowing comfort. And mechanics will appreciate the fast and easy access to all service items.
Powerful Engine
With a 21.5 hp (16 kw) Kubota® Diesel Engine, the Reelmaster® 3100-D has the power to climb and power to cut through difficult mowing conditions.
Superior Traction
There's no need to worry about mowing around objects while traversing hills, even in wet terrain. The parallel hydraulic flow between front and rear wheels assures full-time 4-wheel drive. And the individual wheel brakes provide effective traction assistance on wet turf.
Sidewinder®
Sidewinder cutting units shift left and right a total of 24 inches (61 cm). This allows the tire tracks to be shifted within the mowing path to reduce wear on the turf.
Ease of Service
With the engine located in the rear of the machine, the Reelmaster® 3100-D is easy to service. Open the engine compartment to have access to all filters, fluids and engine components for fast preventative maintenance.
Out-Front Operator
The operator sits out-front on the Reelmaster® 3100-D for better mowing visibility and easier access getting on and off the machine. Engine noise, vibration, and exhaust are all located behind the operator.
72" or 85" Width of Cut
The Reelmaster® 3100-D is available in a 72" or 85" (183 cm or 216 cm) width of cut. With a choice of 5, 8, and 11 blade reels and adjustable reel speed control, this mower can be configured to meet all mowing applications.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
21.5 hp (16 kw) Kubota® Diesel
Fuel Capacity
7.5 gal (28.4 L)
Mowing Speed
0 - 6 mph (10 km/h)
Transport Speed
0 - 9 mph (0 - 15 km/h)
Cutting Width
72 in or 85 in (1.8 m or 2.1 m)
Adjustment
Dual point bedknife to reel
Backlapping
Standard on-board
Cutting Units
Dual Precision Adjustment (DPA) Cutting Units
Height of Cut
.25" to 2.5" (6 mm to 6.4 cm)
Reel Diameter
7 in (18 cm)
Number of Blades
5, 8, and 11 blade
Reel Drive
Hydraulic
Reel Length
27 or 32 in (69 or 81 cm)
Reel Speed
Adjustable - 1000 RPM max
Traction Drive
Series / Parallel 3WD
Weight
Approx. 1,860 lbs. (840 kg)
Warranty
2 year limited warranty
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
Verti-Cutting Reels
Used to minimize, remove and control thatch to prevent scalping and disease. Cut the rhizomes and stolons to enable regenerative grass growth. Extended wear carbide tipped blades are standard.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.

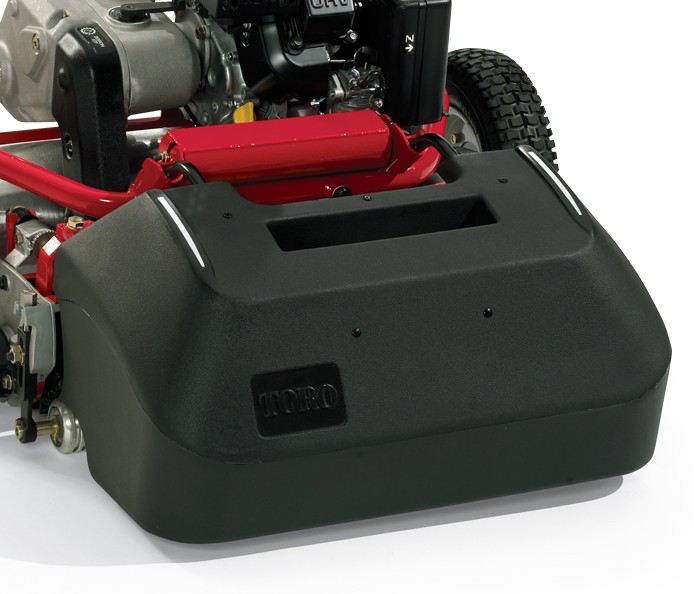

Grass Basket
Collect the clippings with the optional grass basket.
The Toro® Reelmaster® 3550-D floats effortlessly over contours in fairways and green surrounds. With a productive 82" (2.1m) cutting width, turf-friendly tires, the superior traction of a Series/Parallel 3-wheel drive system, and a weight of less than 2,000 pounds, the Reelmaster® 3550-D is engineered to make a big impression...without leaving one.
Powerful Engine
Powered by a 24.8 hp (18.5 kW) Kubota diesel engine, the Reelmaster® 3550-D provides plenty of power to climb hills, even while running groomers and rear roller brushes.
Superior Traction
The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it's gentle on the turf.
Lightweight Design
With a weight that is on average 15-20 percent lighter then comparably equipped machines, the Reelmaster® 3550-D provides the ideal combination of turf friendliness and productive performance.
Smooth Turf Friendly Tire
Smooth turf tires are standard to minimize turf damage.
Enhanced Ground Following
18" (45.7 cm) version of fairway DPA cutting units to better handle fairway undulations. 22" (55.9 cm) rear cutting units can be installed to achieve additional overlap if desired.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
Kubota® 24.8 hp (18.5 kW), 3-cylinder, liquid-cooled, diesel
Fuel Capacity
7.5 gallons (28.4 liters) diesel fuel
Mowing Speed
0-7 mph (11.3 km/h)
Transport Speed
0-10 mph (16 km/h)
Cutting Width
82" (2.1 m)
Height of Cut
0.25"-1.0" (6-25mm) in standard configuration. Up to 1.50" (38cm) with high height-of-cut kit.
Weight
Approx. 1985 lbs (900 kg) with 18" 8-blade cutting units
Warranty
Two-year limited
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Grass Basket
Collect the clippings with the optional grass basket.
The Reelmaster 3555-D and 3575-D (5 and 7 inch reel) reel mowers provide productivity, efficiency, and simplicity. The 100 inch width of cut and lighter cut makes it perfect for sports fields. These mowers were designed to be over 20% lighter and much more compact than traditional Toro reel mowers. You get the performance you come to expect from Toro in a size that is not only highly maneuverable, but is also engineered to decrease turf compaction.
Engine Efficiency
Powered by a 24.8 hp (18.5 kW) Kubota diesel engine. The Reelmaster 3555-D and 3575-D provides plenty of power to climb hills, even while operating groomers and rear roller brushes, yet it uses less fuel per acre than a traditional fairway mower.
Quiet Operation
The Reelmaster 3555-D & 3575-D has a quiet, low noise design with only 84 dB(A) at the operator's ear & 73 dB(A) at a 25-foot drive by.
Superior Traction
The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it’s gentle on the turf.
Three Wheel Design
The three wheel design is highly maneuverable which maximizes productivity. Smooth, turf-friendly tires significantly decrease potential for turf tear in tight turns. The 100 inch (2.5 m) cutting width and up to 7 mph (11.3 km/hr) mowing speed make the 3555-D and 3575-D fast and effective.
Simplicity
The Reelmaster 3555-D and 3575-D utilize a common platform with other popular Toro mowers, which reduces operator training time and increases productivity.
Lightweight Design
With a weight that is 20 percent lighter than a comparably equipped Toro 4-wheel drive reel machine, the Reelmaster 3555-D and 3575-D provides the ideal combination of turf friendliness and productive performance.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
24.8 hp (18.5 kw) Kubota® 3-cylinder, liquid-cooled diesel engine
Mowing Speed
0 - 7 mph (0-11.3 km/h) with mow limiter
Transport Speed
0 - 10 mph (0 - 16.1 km/h) forward transport; 0 - 3.5 mph (0 - 5.6 km/h) reverse.
Cutting Width
100 in (2.5 m)
Backlapping
Standard on-board
Cutting Units
Dual Precision Adjustment (DPA) Cutting Units
Height of Cut
8-Blade recommended range 0.5” – 1.0” (13 mm-25 mm). 11-Blade (18”) recommended range 0.25” – 0.75” (6 mm – 19 mm)
Reel Diameter
5 in (12.7 cm)
Number of Blades
8 and 11 blade
Reel Drive
Hydraulic
Reel Length
22 in (56 cm)
Traction Drive
Series/Parallel full time 3-wheel drive
Weight
Approx. 2,280 lbs. (1,034 kg)
Warranty
2 year limited warranty
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Grass Basket
Collect the clippings with the optional grass basket.
The Reelmaster® 5010-H is the industry’s first and only reel mower with a true hybrid drive system. The Reelmaster 5010-H utilizes a Kubota 24.8 hp diesel engine in concert with an in-line motor generator and a self-recharging 48-volt battery pack to provide seamless power to the vehicle and cutting units. The combination of these two power sources comprises Toro’s patented hybrid power delivery system called PowerMatch™. PowerMatch enables the Reelmaster 5010-H to match the power generated to the power required for all cutting conditions. The result is the availability of over 40 horsepower, but only when cutting conditions require it, which saves on average 20% fuel usage, improving operating costs, and the vehicle’s carbon footprint.
Power and Performance
With over 40 available horsepower, the PowerMatch system can handle verticutting, scalping, and steep hills. Power is used so efficiently through the PowerMatch™ system that the Reelmaster 5010-H can perform at least on-par, and in many cases better than much higher horsepower machines. Three years of vigorous field and real-world testing have proven the Reelmaster 5010-H has the power to perform in the most rigorous conditions, and the efficiency to keep it up year after year.
48 Volt Battery Pack
The battery pack is made up of four, 12-volt, Absorbed Glass Mat (AGM) batteries that are maintenance-free and sealed. The batteries are very similar to the ones used in the automobile industry for start-stop hybrids. These batteries are designed for a very long life when they are shallowly discharged and repeatedly recharged with a system like our PowerMatch™. Depending on usage, the life expectancy will vary, but in an average duty cycle, the battery pack can be expected to last years of operation.
Worry Free
Removing the hydraulic cutting mowers and replacing them with electric motors on the Reelmaster 5010-H resulted in over 100 fewer leak points than a conventional 254 cm fairway mower. The remaining vehicle and cutting unit lift system hydraulic lines are predominately hard lines or hoses with limited movement, and are not subject to the same fatigue or service intervals as the cutting unit hoses and motors.
Versatility
The Reelmaster 5010-H has a Plug and Play feature that allows it to accept 5-inch or 7-inch diameter DPA cutting units. Simply plug in the cutting unit and motors of your choice and the machine automatically make all the necessary adjustments. The 5010-H can be equipped with 5" or 7" reels, in either 8 or 11 blade configurations.
Efficient Reel Performance
The electric reel motors allow for precise setting of the clip and consistent power across all five cutting units for a superior cut. The cutting units also feature low-drag seals and low-friction bearing which improve wear and reduce the required horsepower to run the decks.
Precision Control
The Reelmaster 5010-H’s InfoCenter display will actually make maintenance and diagnostics quicker and easier for technicians. The on-board LCD display provides system information alerts, service reminders, diagnostics, fault codes and vehicle and cutting unit adjustments that are easy to see and understand. Precisely control reel speed and clip rate, monitor reel performance and view reel diagnostics with the on-board InfoCenter.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
Tier 4 compliant Kubota® 3-cylinder, liquid-cooled, diesel engine. 24.8 hp (18.5 kW). Four 12V Absorbed Glass Mat (AGM), sealed, maintenance-free lead acid batteries.
Fuel Capacity
14 gallon (53 liter) capacity. Biodiesel-ready for use up to B-20 (20% biodiesel and 80% petrol blend)
Mowing Speed
0-8 mph (0-12.8 km/h) forward; 0-4 mph (0-6.4 km/h) reverse
Transport Speed
0-10 mph (0-16 km/h) forward transport
Controls
Intuitive controls provide improved operator efficiency and safety.
Cooling System
Rear mounted radiator with industrial tube and fin construction, 6 fins per inch, 5.5 quart (5.2 liter) system capacity.
Height
63" (160 cm) seat top, 85.5" (217.2 cm) top of ROPS.
Hydraulic Fluid
11 gallon (56.8 liter) system capacity
Reel Drive
Reel drive circuit is split independently for front and rear cutting units. Reel speeds are electronically adjustable in nine incremental settings. On-board backlapping is standard.
ROPS
Standard with seat belt
Seat
Deluxe high back suspension seat with fore, aft, height and weight adjustment
Steering Controls
Rear wheel, power steering with an independent hydraulic pump and circuit.
Tank Capacity
14 gallon (53 liter) capacity. Biodiesel-ready for use up to B-20 (20% bodiesel and 80% petrol blend)
Tires
Front traction tires: 26.5 x 14-12 turf tires; Rear steer tires: 20 x 12-10
Traction Drive
Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with Cross Trax® All-Wheel Drive system.
Weight
5" cutting units: 2WD - 2,776 lbs (1,259 kg), 4WD - 2,827 lbs. (1,282 kg) 7" cutting units: 2WD - 2,907 lbs. (1,319 kg); 4WD - 2,965 lbs. (1,345 kg)
Warranty
2 year limited warranty. Refer to the Operator's Manual for further details.
Wheelbase
60" (152.4 cm)
Width
Operational width: 116" (288.3 cm); Transport width: 92" (233.7 cm)
CrossTrax® All-Wheel Drive Kit
Based off our innovative series/parallel 3-wheel drive kit, the CrossTrax® system automatically transfers power from the front tires to the opposite rear tires to minimize spinouts and maximize traction on wet terrain. ROPS and seatbelt included.
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Two-Post ROPS Extension System
The two-post rollover protection system (ROPS) extension system enhances the comfort and weather protection for the operator. This unique ROPS system is built on a base model for each Groundsmaster or Reelmaster machine which includes a sunshade and steel support structure that ties into the existing two post ROPS. A large number of accessories mount to the base model, which allows operators to stay safe, comfortable and more productive in all kinds of weather.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Verti-Cutting Reels
Used to minimize, remove and control thatch to prevent scalping and disease. Cut the rhizomes and stolons to enable regenerative grass growth. Extended wear carbide tipped blades are standard.
Air-ride Seat Suspension System
Convert the standard seat suspension to air-ride for rough applications to provide more comfortable ride for operators logging long hours in the seat.
Universal Mount Sunshade
This hard shell canopy protects the operator from the sun and rain. Mounts to the ROPS.
Grass Basket Kit
Collect the clippings with the optional grass basket.
The Reelmaster® 5010 Series features 5-inch or 7-inch Dual Precision Adjustment (DPA) cutting units to deliver an exceptional quality-of-cut and after-cut appearance. The Reelmaster 5010 Series includes powerful Tier 4-complant diesel engines that can be equipped with our exclusive CrossTrax® all-wheel drive system for exceptional power and control. Excellent operator comfort and outstanding serviceability are already included in each of the industry-leading Reelmaster 5010 Series models.
Yanmar® Diesel Engine
The Reelmaster is powered by a 36.8 hp (27.5 kw) Yanmar® diesel engine that includes an exhaust after-treatment system that ensures machine emissions meet the EPA requirements and that your course can do its part for the environment.
Lighter Weight Design
Optimized design and use of lightweight materials means less weight and turf compaction without sacrificing performance and functionality.
Improved Operator Comfort
All of the indicators and controls to operate the unit are conveniently located on the right armrest. Control console pivots back for right hand entry and exit. Tilt steering, deluxe suspension seat, improved visibility and lower operating noise enhance the operator experience and help to reduce fatigue.
Simplified Maintenance
Improved access to routine service points and service components, along with a robust machine design, results in less frequent maintenance intervals and less time is required to perform maintenance tasks.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
36.8hp (27.5kW) to 43.5hp (32.4kW) Yanmar® Diesel Engine
Fuel Capacity
14 gal (53 L) diesel fuel
Mowing Speed
0 - 8 mph (12.8 km/h)
Cutting Width
100" (2.5m)
Weight
Approx. 2,756 lbs. (1,276 kg) 2WD; 2,866 lbs. (1,326 kg) AWD
Warranty
2 year limited warranty
CrossTrax® All-Wheel Drive Kit
Based off our innovative series/parallel 3-wheel drive kit, the CrossTrax® system automatically transfers power from the front tires to the opposite rear tires to minimize spinouts and maximize traction on wet terrain. ROPS and seatbelt included.
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
Two-Post ROPS Extension System
The two-post rollover protection system (ROPS) extension system enhances the comfort and weather protection for the operator. This unique ROPS system is built on a base model for each Groundsmaster or Reelmaster machine which includes a sunshade and steel support structure that ties into the existing two post ROPS. A large number of accessories mount to the base model, which allows operators to stay safe, comfortable and more productive in all kinds of weather.
Verti-Cutting Reels
Used to minimize, remove and control thatch to prevent scalping and disease. Cut the rhizomes and stolons to enable regenerative grass growth. Extended wear carbide tipped blades are standard.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Air-ride Seat Suspension System
Convert the standard seat suspension to air-ride for rough applications to provide more comfortable ride for operators logging long hours in the seat.
Grass Basket Kit
Collect the clippings with the optional grass basket.
Universal Mount Sunshade
This hard shell canopy protects the operator from the sun and rain. Mounts to the ROPS.
The Toro® Reelmaster® 7000-D is equipped with a powerful 55 hp (41kW) Yanmar® diesel engine and a SmartCool™ temperature-activated, auto-reversing fan that automatically blows debris off the air intake screen to keep the engine cool. High-torque reel motors allow the Reelmaster 7000-D to power through tough scalping and verticutting jobs, resulting in high productivity. This product also features Toro’s industry leading EdgeSeries™ dual precision adjustment (DPA) cutting units. Available in 27 inch or 32 inch width. Optional standard air-ride suspension and an ergonomic control arm keeps operators comfortable and productive.
Powerful Yanmar® Diesel Engine
The Reelmaster 7000-D is powered by a 55 hp (41kW) Yanmar® diesel engine that includes an exhaust after-treatment system that ensures machine emissions meet the EPA requirements and that your course can do its part for the environment.
SmartCool™ System with Auto-Reversing Cooling Fan
Variable speed, temperature actuated reversing fan. Blows chaff off intake screen to help reduce overheating. Big time saver which reduces that amount of times an operator has to stop and exit the unit to clean the back hood.
4-Wheel Drive
The Reelmaster 7000 features a unique, parallel hydraulic traction system that assures full-time, bi-directional 4-wheel drive. Parallel hydraulic flow between front and rear wheels means that you will have 4-wheel drive assistance in turns, enabling easier trimming around objects without tire scuffing and dependable traction on hills and wet terrain. Optional 4WD Flow Divider Kit.
Increased Overlap Option
By adding two 32" (81 cm) rear cutting units the overlap area can be increased to almost 6" (15 cm) thus eliminating the possibility of uncut grass in tight turns or on hillsides.
Improved Operator Comfort
All of the indicators and controls to operate the unit are conveniently located on the right armrest. Control console pivots back for right hand entry and exit. Tilt steering, deluxe suspension seat, improved visibility and lower operating noise enhance the operator experience and help to reduce fatigue.
Simplified Maintenance
Improved access to routine service points and service components, along with a robust machine design, results in less frequent maintenance intervals and less time is required to perform maintenance tasks.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
Yanmar 55 hp Liquid-cooled 4-Cylinder Diesel Engine
Fuel Capacity
22 gallons (83 liters) diesel fuel
Mowing Speed
0-7 mph (0-11 km/h) forward
Transport Speed
0-14 mph (0-22.5 km/h) forward, 0-7 mph (0-11 km/h) reverse
Cutting Width
121” (307 cm)
Height of Cut
0.25" - 2.50" (6.35 - 63.5 mm)
Weight
4,300 lbs (1950 kg) - with full fluids and no cutting units
Warranty
Two-year limited
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
Two-Post ROPS Extension System
The two-post rollover protection system (ROPS) extension system enhances the comfort and weather protection for the operator. This unique ROPS system is built on a base model for each Groundsmaster or Reelmaster machine which includes a sunshade and steel support structure that ties into the existing two post ROPS. A large number of accessories mount to the base model, which allows operators to stay safe, comfortable and more productive in all kinds of weather.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Verti-Cutting Reels
Used to minimize, remove and control thatch to prevent scalping and disease. Cut the rhizomes and stolons to enable regenerative grass growth. Extended wear carbide tipped blades are standard.
Grass Basket
Collect the clippings with the optional grass basket.
Universal Mount Sunshade
This hard shell canopy protects the operator from the sun and rain. Mounts to the ROPS.
The Reelmaster® transport frames featuring hydraulic lift arms for amazing maneuverability combined with easy transportability.
High Floatation Tires
High floatation front and rear tires for low PSI on the turf and minimal turf marking.
Lift On Command
The operator simply pulls the hydraulic levers to lift mowers 1, 2 and 3 as a unit, or mowers, 4, 5, 6 and 7 separately.
Lockup Devices
Lockup devices prevent the lowering of mowers during transport.
Cutting Width
11 feet (3.4 m) (5 Unit) / 14 feet 4 inches (4.4 m) (7 Unit)
Warranty
2 year limited warranty
Cutting Capacity
6.7 acres (2.7 ha) (5 Unit) / 9.4 acres (3.8 ha) (7 Unit) @ 5.5 mph (9 km/h)
Main Frame
Tubular and structural steel
