Bunkers are hazards on a golf course. Despite this fact, now these are expected to be maintained to playing conditions. Many of the frequently performed bunker maintenance tasks such as hand raking, repairing washouts, removing debris, adjusting sand depth and trimming edges are labour-intensive. Using machines can condition bunkers much faster than manual operations.
The Sand Pro 2040Z mechanical rake is unlike anything else in the marketplace; a zero-turn mechanical groomer delivering unmatched maneuverability and productivity. This unique machine is a daily bunker rake that will reduce labor costs for both mechanical and hand raking of bunkers and infields. A brand new "flex" raking system with the patented "lift in turn" feature enables an operator to turn tightly in bunkers without leaving unraked teardrops or tire marks.
Unparalleled Maneuverability & Productivity
Zero-turn steering allows the Sand Pro 2040Z to groom many bunkers other mechanical groomers simply cannot access. This means you can groom more bunkers with less labor, allowing your staff to complete other tasks sooner.
Innovative Bunker Raking System
This unique 84-inch (213 cm) wide flex tooth rake features three reversible rubber trowels that reduce damage to bunker liners and edges. Each of the rake's three sections moves independently to follow bunker contours. The flex tooth rake has adjustment stops for pivot, rake pitch and "lift in turn" height.
"Lift In Turn"
This patented feature makes the inside flex tooth rake section lift in a tight turn preventing teardrop formation, leaving a uniform bunker surface.
Thumb-Activated Groomer
The rear attachment is easily operated through a thumb switch on the right hand control stick. The hydraulic lift system is safe and quick, allowing the operator to enter and exit bunkers quickly.
Fast Transport
The Sand Pro 2040Z transports at 12 mph (19.3 km/h), 20% faster than other Sand Pro models.
Reliable Engine
The Sand Pro 2040Z's twin cylinder, air-cooled Kawasaki® 12.2 hp (9.1 kW) gasoline engine is powerful enough to easily climb in and out of bunkers and quickly transport over hills without bogging down. The single stage cyclonic air filter keeps the engine running cleanly in the dustiest conditions.
Easy Access for Maintenance
The unitized transmission design consists of two independent unitized pump and wheel motor assemblies that minimize hydraulic lines and connections for reliable, low-maintenance performance.
Engine
Kawasaki® 12.2 hp (9.1 kW) 2 cylinder, 4-cycle, gasoline
Fuel Capacity
4.5 gal (17 L) of unleaded gas
Ground Speed
Forward 0-12 mph (0-19.3 km/h), Reverse 0-4 mph (0-6.4 km/h)
Height
73 in (185 cm)
Length
89 in (226 cm) with Flex Tooth Rake, 84.8 in (215 cm) with Nail Drag
Traction Drive
Belt driven independent infinitely variable unitized transmission, with automatic tensioning system.
Weight
920 lbs (417 kg) with Flex Tooth Rake, 970 lbs (439 kg) with Nail Drag
Warranty
2-year limited
Width
84 in (213 cm) with Flex Tooth Rake, 71.5 in (182 cm) with Nail Drag
Flex Tooth Rake
The reversible rubber trowels are made from a modified natural rubber providing exceptional grooming and will not tear bunker liners or damage turf. The 84-inch wide rake is comprised of three sections and able to continuously groom a 70-inch radius surface, a new industry benchmark. The patent-pending "lift-in-turn" design allows for continuous grooming during a zero radius turn.
Light Kit
Two LED lights, one front-facing and one rear-facing, that mounts to ROPS.
Brush Finishing Kit
Three section brush that mounts to flex tooth rake.
Rake Holder
Sand Pro 2040Z has a standard rake holder mounted on left hand side. A second optional rake holder can mount to right hand side of Sand Pro 2040Z.
Bimini Sunshade
Helps you stay cool and comfortable on sunny days. Canvas sunshade that mounts to ROPS.
Mesh Bag Kit
Storage bag for maintenance tools, trash, debris, etc.; mounts to ROPS.
Speed Limiter Kit
Automatically reduces maximum speed of the traction unit when the rear attachment is lowered. The kit allows the grooming speed to be set in the range of 3-7 mph (4.8-11.3 km/h).
Seat Suspension Kit
Rubber isolators provide cushioning.
Turf Trac Tire
Less aggressive tread for rear drive tires.
It’s time to demand more from your bunker rake. With the exclusive Quick Attach System (QAS) offering tool-free, quick attachment change outs and over 25 valuable attachments, the Sand Pro 3040 and 5040 are versatile utility vehicles with as many uses outside the bunker as in it. The Sand Pro 5040’s optional front QAS provides added flexibility and exclusive steerable front attachments for surgical precision. The Toro Sand Pro keeps bunkers in tournament condition every day.
Power Packed Engines
The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.
3WD Series/Parallel™ Traction Drive
The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.
Ease of Use
Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.
Front Manual Blade
Finger tip operation (no overhead bar), paired handle/foot pedal and torsion bar to improve down pressure provide level/consistent contouring in difficult areas. Quick-up latch locks blade in transport position between uses to improve operator ease of use.
Maneuverable Steering
For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.
Maintenance Friendly Layout
The new unit was designed with the mechanic in mind, to reduce, simplify, and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.
Quick Attach System™ (QAS)
With the Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! Match the machine to the environment to get your fields back into playing condition The QAS allows you to do more with less, and get the job done faster. Rear QAS is standard on the Sand Pro® 3040 and 5040, front QAS™ is optional on the Sand Pro® 5040.
Mid-Mount System
With the Mid-mount system, a flex mounted toolbar can be adjusted to flex backwards when it comes in contact with anything from rocks or other rigid objects to prevent gouging or wash boarding. Multiple locking depth settings to ensure consistent depth of scarification from day to day or between operators. A mid-mount leveling system is also available to make quick work of the difficult projects like around dugouts or player positions.
Quick Connect Hydraulics
Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.
Engine
16 hp (12 kw) Vanguard® 4-cycle, gas
Fuel Capacity
5 gal (18.9 L)
Ground Speed
0-10 mph (0 - 16.1 kph)
Height
45.25 in (1.15 m)
Length
67.5 in (1.7 m)
Traction Drive
3 wheel drive
Weight
930 lbs. (422 kg)
Warranty
2-year limited warranty
Weight
58" (147.3 cm)
Accessory Guide
iew all available attachments and accessories in the Accessory Guide
The Sand Pro® 5040 is the definition of versatility and function. The Quick Attach System™ (QAS) for front, mid and rear attachments allows for under-a-minute attachment changes. With a powerful 18 hp (13.4 kW) engine and hydraulic power steering, be more productive with over 20 attachments, including the Flex Blade which raises and lowers hydraulically. Each attachment was specifically designed to take the operator influence out of the equation for high performance and a consistent surface finish.
3WD Series/Parallel™ Traction Drive
The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.
Steerable Front Attachments
Steerable front attachments on the Sand Pro® 5040 give operators the precision never before offered in this industry. The newly designed Flex Blade is adjustable to different environments (wet/dry), scarify, level and smooth in the same pass. Improve the operators ability to direct the attachment into and out of tight areas, like around dugouts or base path contours. Hydraulic float position and steerable blade reduces operator influence and the potential for damage. Combined, these features improve the consistency between fields, operators, and weather conditions.
Quick Connect Hydraulics
Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.
Power Packed Engines
The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.
Quick Attach System™ (QAS)
With the Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! Match the machine to the environment to get your fields back into playing condition The QAS allows you to do more with less, and get the job done faster. Rear QAS is standard on the Sand Pro® 3040 and 5040, front QAS™ is optional on the Sand Pro® 5040.
Maneuverable Steering
For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.
Maintenance Friendly Layout
The new unit was designed with the mechanic in mind, to reduce, simplify, and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.
Ease of Use
Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.
Mid-Mount System
With the Mid-mount system, a flex mounted toolbar can be adjusted to flex backwards when it comes in contact with anything from rocks or other rigid objects to prevent gouging or wash boarding. Multiple locking depth settings to ensure consistent depth of scarification from day to day or between operators. A mid-mount leveling system is also available to make quick work of the difficult projects like around dugouts or player positions.
Engine
Vanguard® 18 hp (13.4 kW) V-Twin, 4-Cycle, Gas
Fuel Capacity
5 gal (18.9 L)
Ground Speed
0-10 mph (0 - 16 kph)
Height
45.25" (1.14 m)
Length
67.5" (1.7 m)
Traction Drive
3-wheel drive
Weight
930 lbs. (421.8 kg)
Warranty
2-year limited warranty
Width
58" (1.47 m)
Accessory Guide
View all available attachments and accessories in the Accessory Guide
Midmount Solid Tine Toolbar
Reversible solid tines designed for aggressive scarifying and harder surfaces (carbide tipped teeth are also available for the harshest conditions).
Rear Cocoa Drag Mat
Designed to quickly produce a premium finish on dry bunkers.
Midmount Spring Tine Toolbar
Flexible 1/4"x 5" (6 mm x 12.7 cm) tines designed for light scarifying and breaking up top crusts after rains.
Rear Segmented Grooming Broom
QAS grooming brooms designed to minimize top surface disruption to maximize firmness for a smooth finished look.
Rear Hitch Kit
200 lbs (90.7 kg) gross trailer weight/ hitch load.
Rear Debris Blower
QAS high power cyclone blower designed to quickly clear debris from groomed and unwanted areas. Hydraulically powered, 2000 rpm fan speed - 2700 cfm @ 81 mph (76.4 cmm @ 130 kph).
Rear Finish Grader
QAS Designed for leveling and/or scarifying large areas like difficult sports field areas. 66 (168cm) width, box plow and scarifier, 1.8 (4.5cm) max working depth, spring load regulation to allow relief if an obstruction is hit. Hardened carbide tips available for scarifier teeth.
Rear Drag Mat Carrier System
QAS mounting carrier frame designed to eliminate the need to manually lift drag mats between passes and traveling from field to field. 72 (183cm) width, accepts steel or cocoa drag mats. Hydraulic raise/lower of drag mats.

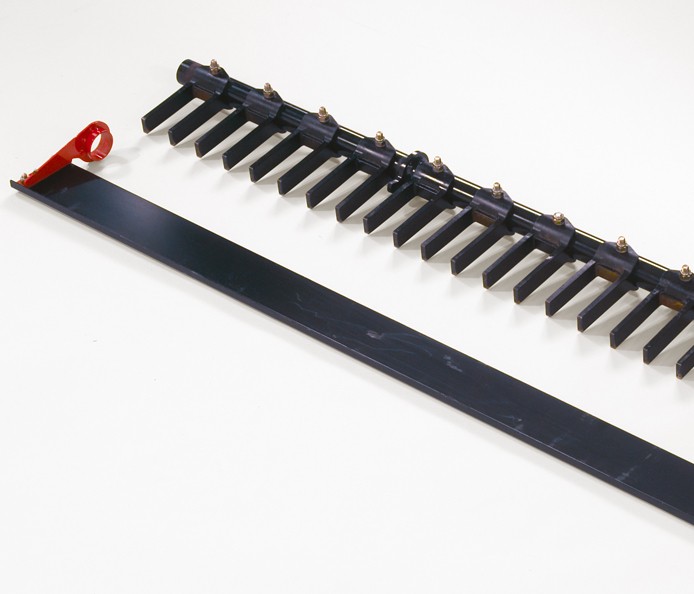

Midmount Scarifier/Leveling Blade
Mid-mount leveling blade attaches to any tine toolbar to quickly level out large areas. Selectable depth engagement from ground level to 1.5 (3.8 cm), 52 (132.1 cm) width, transport height 6.75 (17.1 cm)
Midmount Weeder Tine Toolbar
Cultivation style tines for removing weeds and grass from unwanted areas.
Rear Spiker
QAS Ground driven design for spiking and increasing air flow on turf. Rear QAS 57.6 (746cm) width, 1.25 (3.1cm) max working depth, 2.4 (6.1cm) blade spacing. Two independently floating units, with 12 spiker blades and 11 hold down fingers.
Front Hydraulic Flex Blade
36 (91.4 cm) width steel blade 4 position settings: Raise, Hold, Lower, and Float.Infield Pro 5040 only.
Rear Steel Drag Mat
Designed to quickly groom and finish wet or dry sports fields, while minimizing the displacement of infield mix especially into the outfield.
Front 60" (152.4 cm) Blade Extension
60" (152.4 cm) bolt on expansion blade designed for leveling out larger uneven areas (for manual blade only).
Front Lip Broom
The QAS Lip Broom is a front attachment designed to eliminate the task of manually maintaining infield lips. The specially designed bristle broom is driven by the QAS remote hydraulics, and removes ridge buildup by sweeping material back into the infield. The attachment can be hydraulically lifted and lowered, is steerable, and offers adjustability for aggressiveness and speed.
Rear Spring Rake
QAS spring leaf rake assembly designed for sole use or in combination with tooth rake to achieve desired appearance. Great for wet conditions and collecting debris in groomed areas. Rear QAS 76" (193cm) width, with 5 individual rake sections and spring teeth for excellent floatation and minimal surface disruption.
Rear Tooth Rake
QAS Grooming rake designed to lightly scarify, pack, smooth and groom in one pass (for wet or dry conditions). Great for improving the performance of neglected sports fields. 72" (183cm) width, with 5 rake sections, 27 prongs adjustable for depth and wear.
QAS™ Bunker Pump
Bring your flooded areas back in play faster while requiring only one person to operate. Driven by the Sand Pro's powerful onboard hydraulics, the QAS™ Bunker Pump throws water up to 40 feet (12.2 metres), pumping 95 gallons per minute (360 litres per minute). The Bunker Pump utilizes the exclusive Quick Attach System™ (QAS) and can mount on the front or rear of a Sand Pro® (rear-only for the 3040) for added versatility. An available hose kit gives added flexibility allowing the QAS™ Bunker Pump to be dropped into hard to reach areas.
Front Spring Loaded Manual Blade
Spring balanced manual blade, designed for leveling out uneven areas. Comes with additional foot lever to enable operator to easily apply added down pressure. 40 (101 cm) width steel blade, spring assisted for raising plow.
Rear Nail Drag
The QAS Nail Drag is a rear attachment offering precision scarification of skinned areas on sports fields. The QAS Nail Drag can be lifted and lowered hydraulically and has adjustable down-pressure across the entire width of the drag for a smooth, even scarification across all surfaces. Adding the Steel Drag Mat or the Coco Drag Mat to the QAS Nail Drag offers scarification and grooming in one easy step. In addition, the Steel Mat and the Coco Mat can also be used without engaging QAS Nail Drag and the Nail Drag Carrier System eliminates the need to manually lift drag mats between passes or fields.
Rides on a cushion of air in order to get hard to cut areas cleanly, without tearing the turf, giving a well-manicured finish. Delivers a superb finish for large and small applications.
Strong Deck
Exceptionally strong and lightweight ABS injection-molded deck.
Control
Better control and greater stability in extreme conditions and difficult cutting areas.
Powerful
High power-to-weight ratio (comparable to 2-stroke engines) thanks to weight-conscious engineering.
State-of-the-art Impeller
HoverPro 450 and 550 feature an industry leading 14” (35.5 cm) impeller for maximum lift and smoother mowing.
Engine
57-160cc Honda® Gas Engine
Cutting Width
16” - 21” (40 - 53 cm)
Height of Cut
0.7-1.2" (18 - 30mm)
Warranty
Two-year limited warranty. Refer to operator’s manual for further details.
Weight
27.5 - 42 lbs (12.5 - 19 kg)
Hi-Rise Kit
Increases the height of cut by 1.2" (35mm). Suitable for HoverPro 400 & 450 models. Ideal for operations facing longer grass lengths
Transport Wheels
Detachable wheels for easy site-to-site transport. Can also be latched out of position when mowing. Suitable for HoverPro 450 and 550 models.
Extension Handles
Provides additional length to the existing handle-bars – ideal when working on slopes and other challenging areas.
Swing-Tip Blade
Optional swing-tip blade for use on the Hover Pro 450 provides the benefits of both a trim wire and a traditional metal cutting blade with three rotating cutting knifes on a circular disk.
