Dependable, reliable performance is what you will find with Toro rotors for residential, commercial and sports field applications. In addition, you will also find innovative features such as NO TOOLS arc adjustment, higher pop-up heights and some of the most efficient nozzles in the industry.
When spray heads won’t do the job and a full size rotor is just too much, you need the Mini 8 from Toro®. Designed to fi ll in that hard to cover area between 20’ (6.1m) and 35’ (10.7m), the Mini 8 provides great value and water efficiency for your landscapes.
Top Arc Indication
Ensures easy adjustments from 40° to 360° with visual feedback of arc change by reading the scale.
Five Interchangeable Nozzles
To cover varying flow and radius requirements (comes pre-installed with a 1.5 nozzle).
Stainless Steel Radius Adjustment Screw
Allows up to 25% reduction.
Pressure Activated Seal
Minimizes flow-by during pop-up and keeps debris away from stem during retraction.
Part And Full Circle In One
Offers convenience and reduces inventory requirements.
Radius
20'-35' (6.1 - 10.7 m)
Flow
0.8-3.40 GPM (3 - 12.9 LPM)
Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One
Recommended Operating Pressure
30-60 PSI (2.1 - 4.1 Bar)
Inlet
1/2" (12 mm)
Pop-Up Height
3 3/4" (95 mm)
Body Height
6" (150 mm)
Cap Diameter
2 1/4" (57 mm)
Exposed Diameter
1 3/4" (45 mm)
The 300 Series Multi-Stream Rotor from Toro® combines a highly distinctive way to irrigate with the reliability you’ve come to expect. Uniquely designed, Multi-Stream Rotors feature multiple rotating streams, a slower precipitation rate and excellent wind resistance.
Unique Multiple Rotating Streams
Provides slow, effective watering, plus you can zone your sprinklers with different arcs together, saving time and water. Multiple rotating streams create a striking visual appeal.
Matched Precipitation Rate Arc Discs
Ensures uniform delivery of water across each square foot of an irrigated area, resulting in high-precision water application.
Choice Of Six Nozzles And Nine Interchangeable Arc Discs
For maximum versatility covering varying landscape needs (4 separate nozzles for high-pops).
Selection Of Pop-up Heights
3” (76,2mm) Lawn Pop-up, shrub and high-pop – to satisfy varying installation requirements.
Radius
15’ - 30’ (4.6 - 9.2 m)
Flow
Lawn Pop-up and High-pop: 0.57-7.51 GPM (2.1-28.4 LPM) Shrub (COM): 2.07-6.36 GPM (7.8-24 LPM)
Arc
Full circle; Part/Full Circle in one
Recommended Operating Pressure
35-50 PSI (2.4 - 3.5 Bar)
Inlet
Lawn Pop-up: 3/4" (19 mm) Shrub: 1/2” (12 mm) to 3/4” (19 mm)
Pop-Up Height
Lawn Pop-up: 2¾” (70mm) High-Pop: 11¾” (298mm)
Body Height
Lawn Pop-up: 6 1⁄8” (155mm) High-Pop: 16” (405mm)
Cap Diameter
3" (75 mm)
The Toro® T7 Rotor is built rugged to withstand the harsh conditions and vandalism present in municipal/government, sports fields and commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. Its extensive customer identified features including a full 5 ¾” pop-up height and large radius make it ideal for sportsfields, parks and other large turf applications. Further enhancing its versatility, the T7 is now also Low-Flow Versions, for smaller radius and lower flow applications, such as baseball infields.
Top Arc Indication
Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45°-360°.
High Efficiency Nozzles
Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.
Vandal and Abuse Resistance
Smart Arc™ memory safely returns sprinkler to previously set arc if vandalized.
Design Solutions and Safety
Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.
Versatility
Available in low-flow models (identified by "circle L" on rubber cover), for short radius (38'-53') applications, such as baseball infields.
Radius
Low-flow models: 38'-53' (11,6 - 16,2m); High-flow models: 46'-83' (14,0 - 25,0m)
Flow
Low-flow models: 1.7-13.0 gpm (6,4-49, 2 lpm); High-flow models: 6.8-30.5 gpm (25,4-116 lpm)
Trajectory
25°
Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One
Recommended Operating Pressure
40-100 PSI (2.8 - 6.9 BAR)
Inlet
1" (2.5 cm)
Pop-Up Height
5" (127 mm)
Body Height
8.8" (224 mm)
Cap Diameter
2.2" (56 mm)
The new Toro T5 RapidSet Series Rotor has the features to satisfy all your basic irrigation needs while surprising you with a few extras. The T5 offers an extra inch of pop-up height compared to most competitive units. All lawn models are now available with the optional RapidSet feature, a quick and easy way to make arc adjustments—with NO TOOLS. For those day-in and day-out installations, the T5 is the only rotor you’ll need.
RapidSet® Arc Adjustment
Arc adjustments from 40° to 360° can be made quickly with a few twists for the turret – no tools required. The patent-pending RapidSet slip clutch also protects against gear damage caused by intentional vandalism or inexperienced users.
Airfoil Technology Nozzles
The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles. The nozzles’ unique geometry creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly-laid seeds.
5" Pop-Up
Easily replaces most competitive 4” pop-up rotors in the same footprint, but delivers an extra inch of nozzle clearance.
Available Stainless Steel Models
Commercial-grade 304 stainless steel riser and nozzle base sleeves help prevent ‘stick-ups’ and eliminate scoring of the riser caused by coarse and sandy soils.
Radius
25'-50' (7.6 - 15.2 m)
Flow
0.74 - 9.70 gpm
Arc
40° to 360°, adjustable
Recommended Operating Pressure
25-70 PSI (1.7 - 4.8 Bar)
Inlet
3/4" (19 mm)
Pop-Up Height
5" (127 mm)
Body Height
Lawn pop-up: 7 ½” Shrub: 7 ¾” High Pop: 16 7/8”
Body Diameter
Lawn pop-up: 2 1/4” (57 mm); Shrub: 2 1/4” (57 mm); High-Pop: 2 1/4” (57 mm)
Cap Diameter
Lawn pop-up: 2 5/8” (67 mm); Shrub:N/A; High-Pop: 2 5/8” (67 mm)
Operating Pressure
25-75 PSI (1.7 to 4.8 Bar)
Considered the most durable, heavy-duty commercial sprinkler available, the 640 Series is the traditional, proven veteran for athletic fields and other large commercial applications. It is equipped with a standard rubber cover and offers a choice from five nozzles and twelve arcs. A variety of models are available including Valve-In-Head, Check-O-Matic and recycled.
35 Years of Reliability
Once the 640 Series sprinkler goes in the ground, it stays there. With a stainless steel-encased nozzle assembly and gear drive design.
Normally Open Valve-In-Head Body
Allows individual head control - the only commercial grade Toro rotor available with this feature.
Stainless Steel, Engineering Plastic and Brass Construction
Provide dependable performance in the most demanding environments.
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Radius
47'-67' (14.3 - 20.4)
Flow
6.0-25.0 GPM (22.7 - 94.6 LPM)
Arc
Full Circle; Part circle fixed
Recommended Operating Pressure
40-90 PSI (2.8 - 6.2 Bar)
Inlet
1" (2.5 cm)
Pop-Up Height
2 3/8" (6 cm)
Body Height
9" (VIH-10 1/2") (23cm/26.7cm)
Body Diameter
2 1/2" (6.4 cm)
Cap Diameter
3 1/4" (8.3 cm)
Exposed Diameter
1 3/4" (4.4 cm)
For big open spaces, the Toro TS90 provides unparalleled features and performance into a single fully adjustable rotor. Designed for large turf areas, its radius of 53' to 95' is ideal for parks, sports fields, synthetic turf athletic fields and horse arenas. In addition, Toro patented Trujectory™ allows for the fine tuning of nozzle spray height from 7-30° to ensure wind resistance and head-to head spacing.

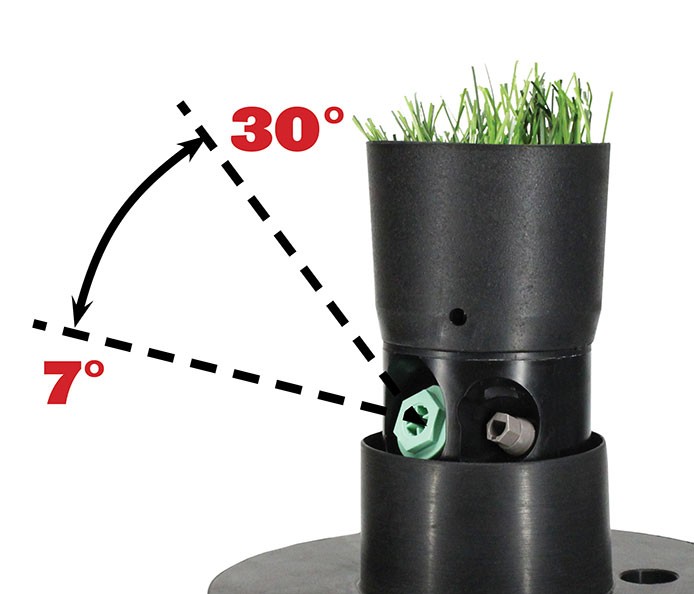

Trujectory Adjustment from 7° to 30°
Fine tunes nozzle spray height, helps provide true head-to-head coverage, and compensates for windy conditions.

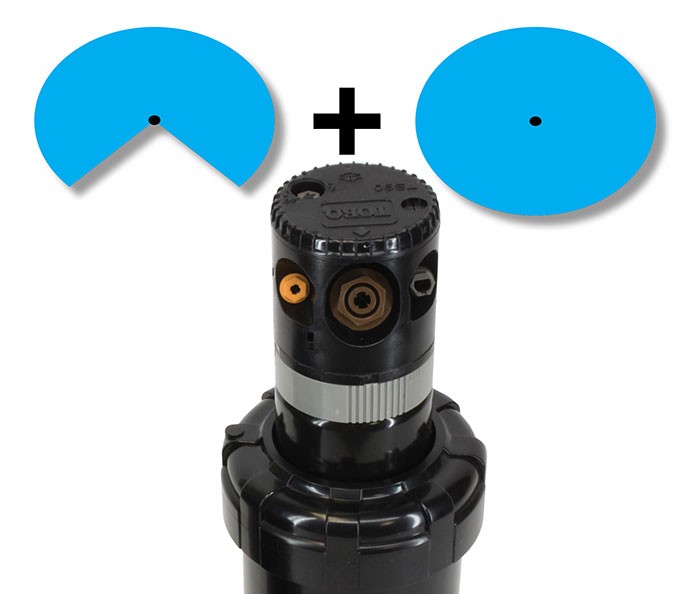

Part And Full Circle In One
Offers convenience and reduces inventory requirements.
Back Nozzle Capable
Perfect for perimeter of sports fields. Provides the flexibility for fine-tuning any watering requirement.
Three Nozzle Configuration
Provides better distribution uniformity, nozzle flexibility and system efficiency.
Constant-Velocity Drive
Provides reliable rotation speed – from sprinkler to sprinkler.
TurfCup™ For Sports Fields
The TurfCup version seamlessly integrates into either natural grass or artificial turf sports fields, enhancing player safety, surface playability and field aesthetics.
Radius
53'-95' (16 - 29 m)
Flow
14.0-61.5 GPM (53 - 233 LPM)
Trajectory
7°-30°
Arc
Part/Full circle in one
Recommended Operating Pressure
40-100 PSI (2.8 - 6.9 BAR)
Inlet
1" (2.5 cm)
Pop-Up Height
4" (10.2 cm)
Body Height
10" (25.4 cm)
Exposed Diameter
2.2" (5.6 cm)
