Fairway reel mowers provide productivity, efficiency and simplicity. The 100-inch width of cut mower provide the best productivity possible. In The line-up, the latest Toro mowers are designed to be over 20% lighter and much more compact than traditional reel mowers.
The Reelmaster 3575-D (7 inch reel) reel mowers provide productivity, efficiency, and simplicity. The 100 inch width of cut and lighter cut makes it perfect for sports fields. These mowers were designed to be over 20% lighter and much more compact than traditional Toro reel mowers. You get the performance you come to expect from Toro in a size that is not only highly maneuverable, but is also engineered to decrease turf compaction.

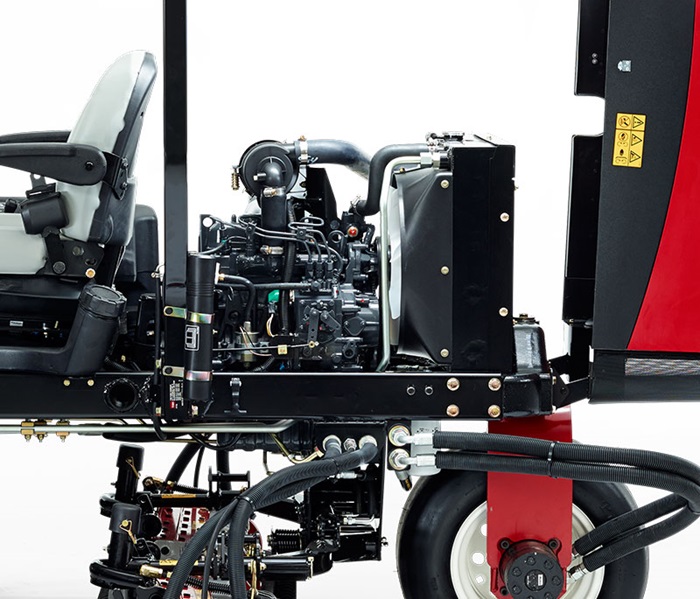

Engine Efficiency
Powered by a 24.8 hp (18.5 kW) Kubota diesel engine. The Reelmaster 3575-D provides plenty of power to climb hills, even while operating groomers and rear roller brushes, yet it uses less fuel per acre than a traditional fairway mower.
Quiet Operation
The Reelmaster 3575-D has a quiet, low noise design with only 84 dB(A) at the operator's ear & 73 dB(A) at a 25-foot drive by.
Superior Traction
The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it’s gentle on the turf.

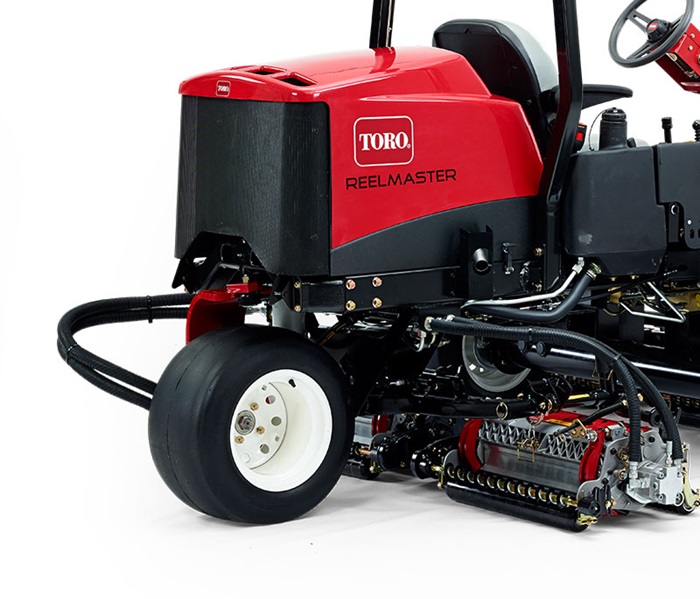

Three Wheel Design
The three wheel design is highly maneuverable which maximizes productivity. Smooth, turf-friendly tires significantly decrease potential for turf tear in tight turns. The 100 inch (2.5 m) cutting width and up to 7 mph (11.3 km/hr) mowing speed make the 3575-D fast and effective.

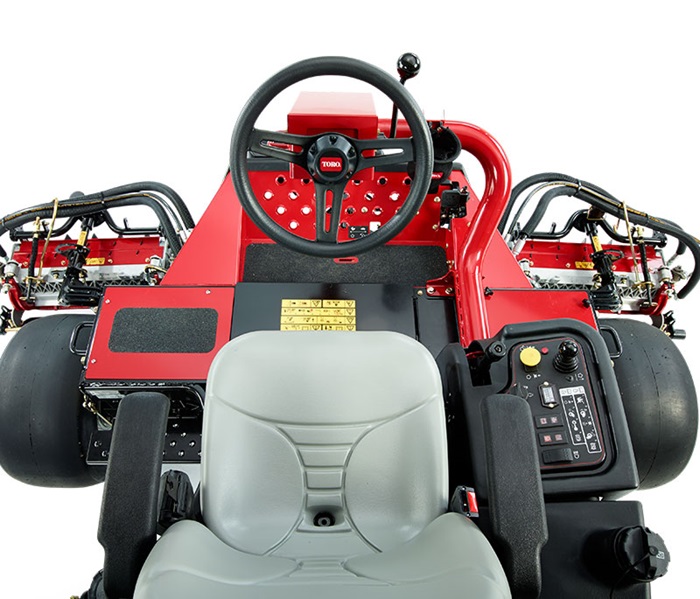

Simplicity
The Reelmaster 3575-D utilize a common platform with other popular Toro mowers, which reduces operator training time and increases productivity.
Lightweight Design
With a weight that is 20 percent lighter than a comparably equipped Toro 4-wheel drive reel machine, the Reelmaster 3575-D provides the ideal combination of turf friendliness and productive performance.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
24.8 hp (18.5 kw) Kubota® 3-cylinder, liquid-cooled diesel engine
Mowing Speed
0 - 7 mph (0-11.3 km/h) with mow limiter
Transport Speed
0 - 10 mph (0 - 16.1 km/h) forward transport; 0 - 3.5 mph (0 - 5.6 km/h) reverse.
Cutting Width
100 in (2.5 m)
Backlapping
Standard on-board

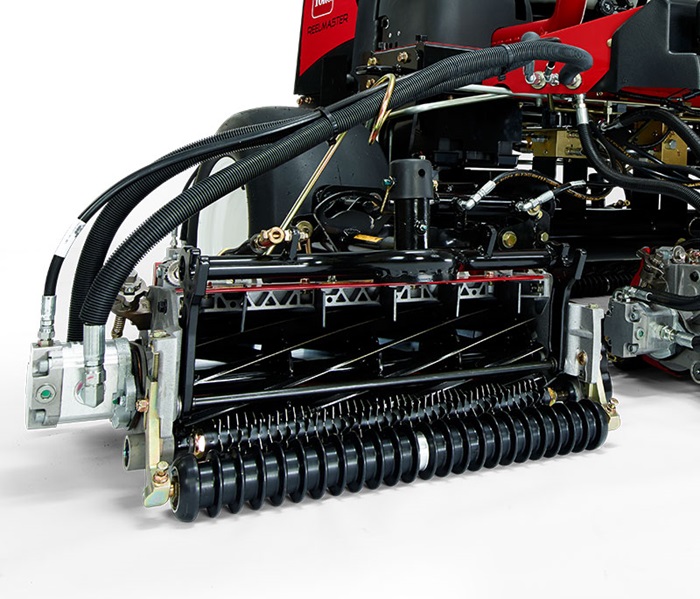

Cutting Units
Dual Precision Adjustment (DPA) Cutting Units
Height of Cut
8-Blade recommended range 0.5” – 1.0” (13 mm-25 mm). 11-Blade (18”) recommended range 0.25” – 0.75” (6 mm – 19 mm)
Reel Diameter
5 in (12.7 cm)
Number of Blades
8 and 11 blade
Reel Drive
Hydraulic
Reel Length
22 in (56 cm)
Traction Drive
Series/Parallel full time 3-wheel drive
Weight
Approx. 2,280 lbs. (1,034 kg)
Warranty
2 year limited warranty
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.

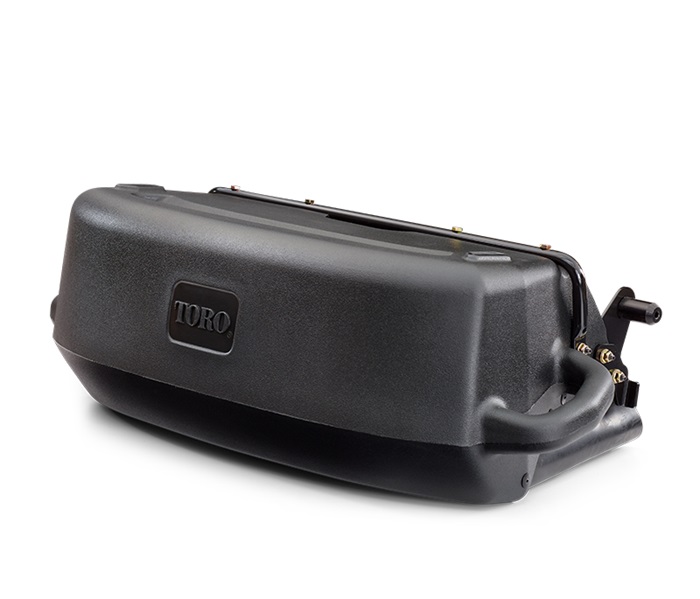

Grass Basket Kit
Collect the clippings with the optional grass basket.
The Reelmaster® 5010 is the industry’s first and only reel mower with a true hybrid drive system. The Reelmaster 5010 utilizes a Kubota 24.8 hp diesel engine in concert with an in-line motor generator and a self-recharging 48-volt battery pack to provide seamless power to the vehicle and cutting units. The combination of these two power sources comprises Toro’s patented hybrid power delivery system called PowerMatch™. PowerMatch enables the Reelmaster 5010 to match the power generated to the power required for all cutting conditions. The result is the availability of over 40 horsepower, but only when cutting conditions require it, which saves on average 20% fuel usage, improving operating costs, and the vehicle’s carbon footprint.
Power and Performance
With over 40 available horsepower, the PowerMatch system can handle verticutting, scalping, and steep hills. Power is used so efficiently through the PowerMatch™ system that the Reelmaster 5010 can perform at least on-par, and in many cases better than much higher horsepower machines. Three years of vigorous field and real-world testing have proven the Reelmaster 5010 has the power to perform in the most rigorous conditions, and the efficiency to keep it up year after year.
48 Volt Battery Pack
The battery pack is made up of four, 12-volt, Absorbed Glass Mat (AGM) batteries that are maintenance-free and sealed. The batteries are very similar to the ones used in the automobile industry for start-stop hybrids. These batteries are designed for a very long life when they are shallowly discharged and repeatedly recharged with a system like our PowerMatch™. Depending on usage, the life expectancy will vary, but in an average duty cycle, the battery pack can be expected to last years of operation.
Worry Free
Removing the hydraulic cutting mowers and replacing them with electric motors on the Reelmaster 5010 resulted in over 100 fewer leak points than a conventional 254 cm fairway mower. The remaining vehicle and cutting unit lift system hydraulic lines are predominately hard lines or hoses with limited movement, and are not subject to the same fatigue or service intervals as the cutting unit hoses and motors.
Versatility
The Reelmaster 5010 has a Plug and Play feature that allows it to accept 5-inch or 7-inch diameter DPA cutting units. Simply plug in the cutting unit and motors of your choice and the machine automatically make all the necessary adjustments. The 5010 can be equipped with 5" or 7" reels, in either 8 or 11 blade configurations.
Efficient Reel Performance
The electric reel motors allow for precise setting of the clip and consistent power across all five cutting units for a superior cut. The cutting units also feature low-drag seals and low-friction bearing which improve wear and reduce the required horsepower to run the decks.

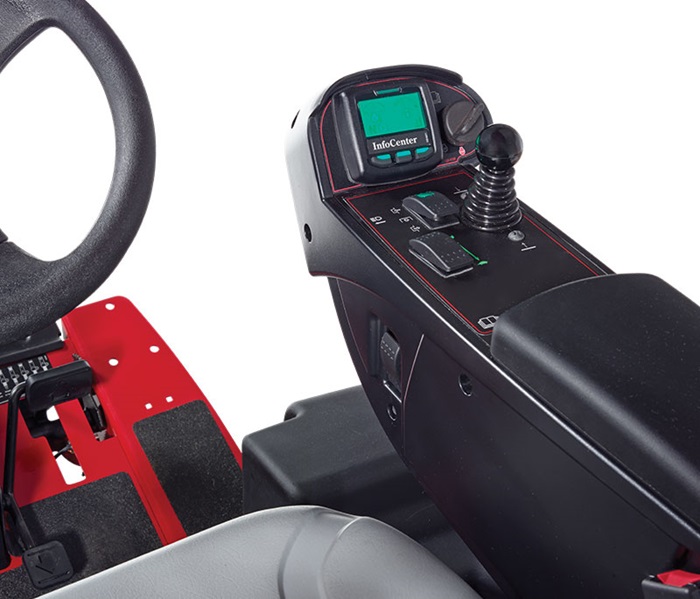

Precision Control
The Reelmaster 5010’s InfoCenter display will actually make maintenance and diagnostics quicker and easier for technicians. The on-board LCD display provides system information alerts, service reminders, diagnostics, fault codes and vehicle and cutting unit adjustments that are easy to see and understand. Precisely control reel speed and clip rate, monitor reel performance and view reel diagnostics with the on-board InfoCenter.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
Tier 4 compliant Kubota® 3-cylinder, liquid-cooled, diesel engine. 24.8 hp (18.5 kW). Four 12V Absorbed Glass Mat (AGM), sealed, maintenance-free lead acid batteries.
Fuel Capacity
14 gallon (53 liter) capacity. Biodiesel-ready for use up to B-20 (20% biodiesel and 80% petrol blend)
Mowing Speed
0-8 mph (0-12.8 km/h) forward; 0-4 mph (0-6.4 km/h) reverse
Transport Speed
0-10 mph (0-16 km/h) forward transport
Controls
Intuitive controls provide improved operator efficiency and safety.
Cooling System
Rear mounted radiator with industrial tube and fin construction, 6 fins per inch, 5.5 quart (5.2 liter) system capacity.
Height
63" (160 cm) seat top, 85.5" (217.2 cm) top of ROPS.
Hydraulic Fluid
11 gallon (56.8 liter) system capacity
Reel Drive
Reel drive circuit is split independently for front and rear cutting units. Reel speeds are electronically adjustable in nine incremental settings. On-board backlapping is standard.
ROPS
Standard with seat belt
Seat
Deluxe high back suspension seat with fore, aft, height and weight adjustment
Steering Controls
Rear wheel, power steering with an independent hydraulic pump and circuit.
Tank Capacity
14 gallon (53 liter) capacity. Biodiesel-ready for use up to B-20 (20% bodiesel and 80% petrol blend)
Tires
Front traction tires: 26.5 x 14-12 turf tires; Rear steer tires: 20 x 12-10
Tires
Front traction tires: 26.5 x 14-12 turf tires; Rear steer tires: 20 x 12-10
Traction Drive
Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with Cross Trax® All-Wheel Drive system.
Weight
5" cutting units: 2WD - 2,776 lbs (1,259 kg), 4WD - 2,827 lbs. (1,282 kg) 7" cutting units: 2WD - 2,907 lbs. (1,319 kg); 4WD - 2,965 lbs. (1,345 kg)
Warranty
2 year limited warranty. Refer to the Operator's Manual for further details.
Wheelbase
60" (152.4 cm)
Width
Operational width: 116" (288.3 cm); Transport width: 92" (233.7 cm)

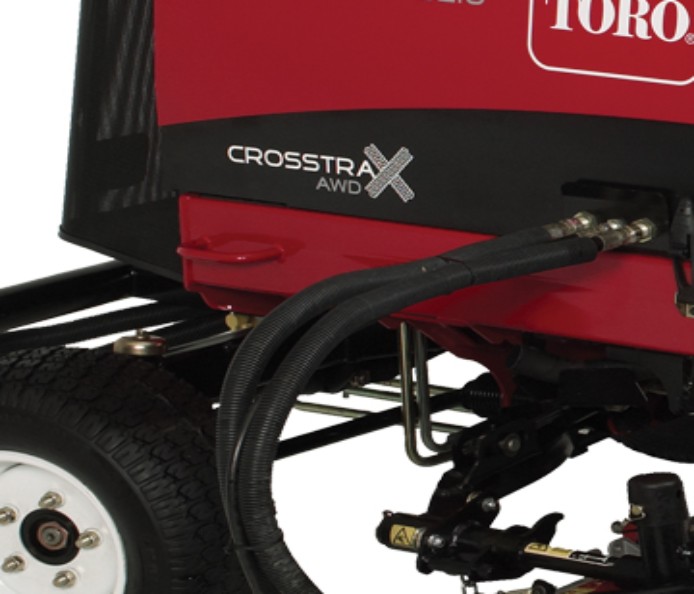

CrossTrax® All-Wheel Drive Kit
Based off our innovative series/parallel 3-wheel drive kit, the CrossTrax® system automatically transfers power from the front tires to the opposite rear tires to minimize spinouts and maximize traction on wet terrain. ROPS and seatbelt included.
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Two-Post ROPS Extension System
The two-post rollover protection system (ROPS) extension system enhances the comfort and weather protection for the operator. This unique ROPS system is built on a base model for each Groundsmaster or Reelmaster machine which includes a sunshade and steel support structure that ties into the existing two post ROPS. A large number of accessories mount to the base model, which allows operators to stay safe, comfortable and more productive in all kinds of weather.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Verti-Cutting Reels
Used to minimize, remove and control thatch to prevent scalping and disease. Cut the rhizomes and stolons to enable regenerative grass growth. Extended wear carbide tipped blades are standard.

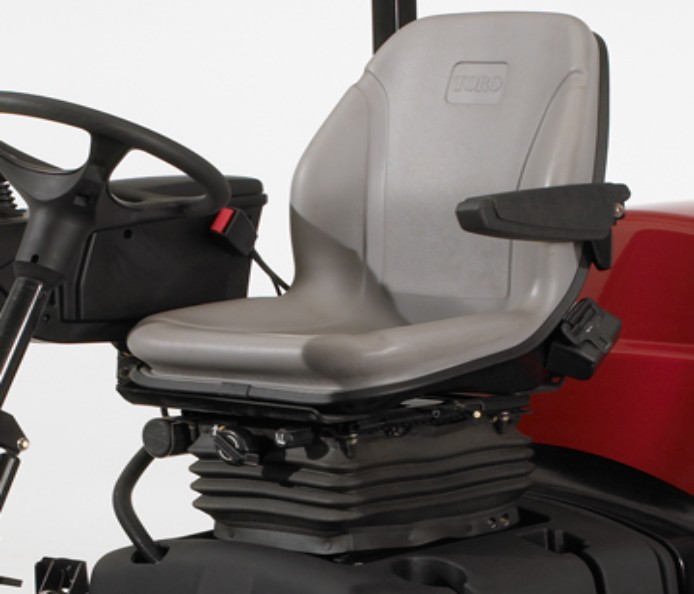

Air-ride Seat Suspension System
Convert the standard seat suspension to air-ride for rough applications to provide more comfortable ride for operators logging long hours in the seat.

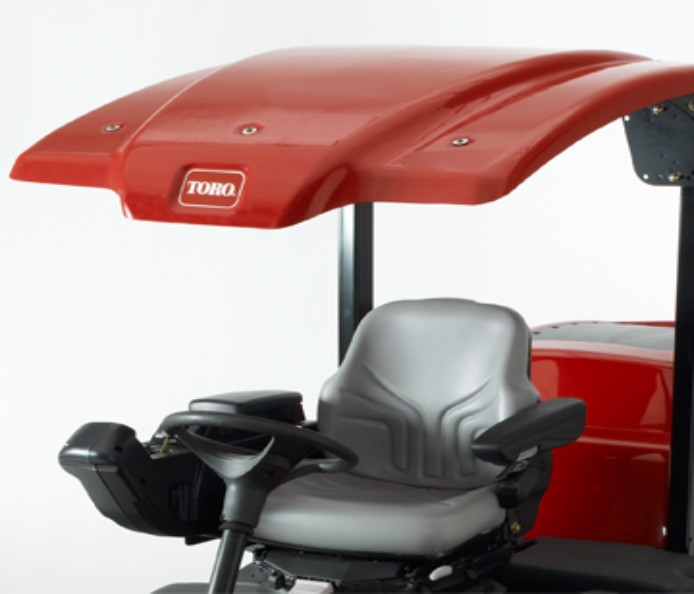

Universal Mount Sunshade
This hard shell canopy protects the operator from the sun and rain. Mounts to the ROPS.
Grass Basket Kit
Collect the clippings with the optional grass basket.
The Reelmaster® 5510 / 5610 features 7-inch Dual Precision Adjustment (DPA) cutting units to deliver an exceptional quality-of-cut and after-cut appearance. The Reelmaster 5510 / 5610 includes powerful Tier 4-complant diesel engines that can be equipped with our exclusive CrossTrax® all-wheel drive system for exceptional power and control. Excellent operator comfort and outstanding serviceability are already included in each of the industry-leading Reelmaster 5510 / 5610 models.
Yanmar® Diesel Engine
The Reelmaster is powered by a 36.8 hp (27.5 kw) Yanmar® diesel engine that includes an exhaust after-treatment system that ensures machine emissions meet the EPA requirements and that your course can do its part for the environment.
Lighter Weight Design
Optimized design and use of lightweight materials means less weight and turf compaction without sacrificing performance and functionality.

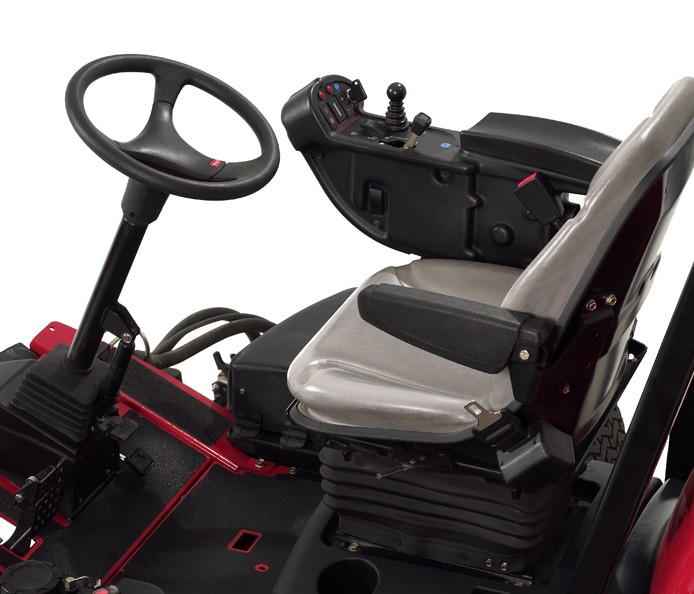

Improved Operator Comfort
All of the indicators and controls to operate the unit are conveniently located on the right armrest. Control console pivots back for right hand entry and exit. Tilt steering, deluxe suspension seat, improved visibility and lower operating noise enhance the operator experience and help to reduce fatigue.

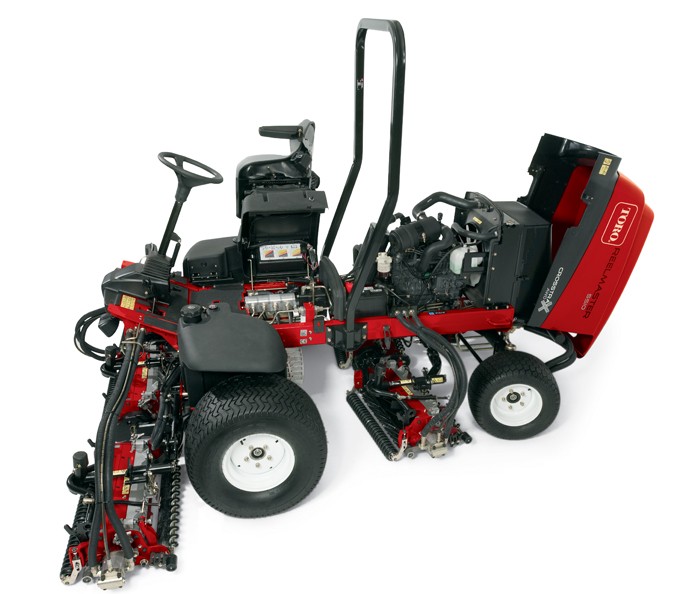

Simplified Maintenance
Improved access to routine service points and service components, along with a robust machine design, results in less frequent maintenance intervals and less time is required to perform maintenance tasks.
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Engine
36.8hp (27.5kW) to 43.5hp (32.4kW) Yanmar® Diesel Engine
Fuel Capacity
14 gal (53 L) diesel fuel
Mowing Speed
0 - 8 mph (12.8 km/h)
Cutting Width
100" (2.5m)
Weight
Approx. 2,756 lbs. (1,276 kg) 2WD; 2,866 lbs. (1,326 kg) AWD
Warranty
2 year limited warranty
CrossTrax® All-Wheel Drive Kit
Based off our innovative series/parallel 3-wheel drive kit, the CrossTrax® system automatically transfers power from the front tires to the opposite rear tires to minimize spinouts and maximize traction on wet terrain. ROPS and seatbelt included.
Powered Rear Roller Brush
The optional real roller brushes promote consistent grass dispersal to help your turf look immaculate. Multiple points of contact and faster rotation provide improved clipping dispersion in wet, sticky conditions.
Two-Post ROPS Extension System
The two-post rollover protection system (ROPS) extension system enhances the comfort and weather protection for the operator. This unique ROPS system is built on a base model for each Groundsmaster or Reelmaster machine which includes a sunshade and steel support structure that ties into the existing two post ROPS. A large number of accessories mount to the base model, which allows operators to stay safe, comfortable and more productive in all kinds of weather.
Universal Groomer
Groomers provide improved quality of cut by lifting turf and reducing grain. Toro’s unique groomer design allows for Bi-directional and neutral grooming positions. Changing turf conditions are no problem with the ability to quickly change from a groomer cartridge to a grooming brush when condition warrant. Groomers also help to knock off dew, disperse grass clippings and integrate clippings into the grass canopy. Optional Broomer provides a full width Brooming effect to enhance grooming results. The Universal Groomer also offers a Quick Set™ design which does not require tools to lower or raise the blades or brushes.
EdgeMax™ Bedknives, Comb Kit, Scrapers
The comb helps the grass stand up for more precise cutting. The scrapers help keep the rollers clean to minimize the clumping of grass around trim and surround areas. The HD bedknife is harder and the lip is taller than the standard bedknife providing longer life. The HD bedknife is recommended for ½" (1.3 cm) heights of cut or higher.
Verti-Cutting Reels
Used to minimize, remove and control thatch to prevent scalping and disease. Cut the rhizomes and stolons to enable regenerative grass growth. Extended wear carbide tipped blades are standard.
Air-ride Seat Suspension System
Convert the standard seat suspension to air-ride for rough applications to provide more comfortable ride for operators logging long hours in the seat.
Universal Mount Sunshade
This hard shell canopy protects the operator from the sun and rain. Mounts to the ROPS.
Grass Basket Kit
Collect the clippings with the optional grass basket.
