From moving people, equipment and material to topdressing and spraying, Toro’s Utility vehicle line up has you covered with some of the toughest and hardest-working utility vehicles on the market today. No matter which one you choose, you can count on this grounds and turf crossover vehicle to deliver exceptional power, payload, versatility and reliability.
The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class. Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.
Power
Whether you choose the 429 cc gasoline, 429cc EFI gasoline, or 48 volt AC electric Workman GTX, power and performance come standard. An improved power to weight ratio boosts payload capacity and productivity. The Workman GTX is the smarter, more efficient way to get the job done!
Suspension
Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue. We also made it the only vehicle in its class to feature a split frame to further increase ride comfort.
Control
An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

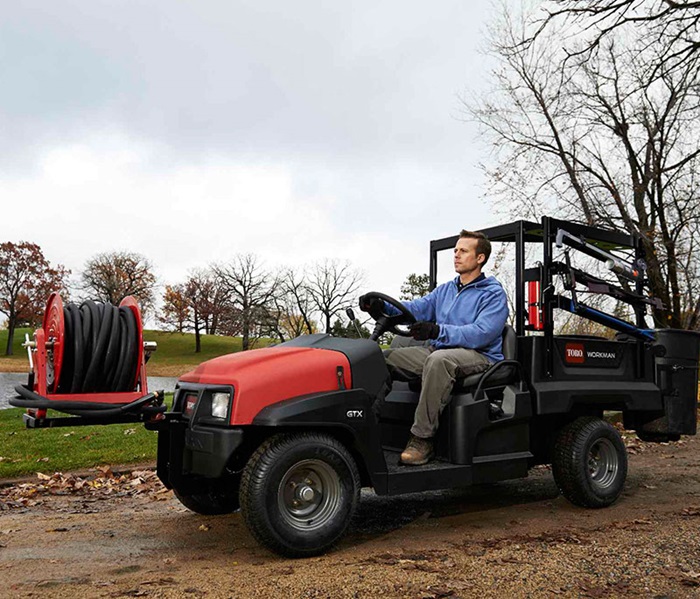

Versatility
The Workman GTX is adaptable for any task. Two or four-seat configurations come with bench or bucket seats. Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity. Steel 4 and 6-foot flat beds are also available.
Comfort
The deluxe bench seat features Elastomeric Vibration Control (ELC) for additional comfort in rough terrain. The GTX also features an ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
Durability
Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability. How do we know? We pushed it to the limits with the most punishing lab tests and gave it no mercy in real-world challenges with customers. The Workman GTX has been through it all so you can run it hard, day after day with confidence.
Detailing
We didn't think of everything. You did. We just listened. Full access to the engine compartment makes service a breeze. Storage is abundant and a standard USB port makes a dead battery on the job a thing of the past.
Braking
The Workman GTX features class-exclusive hydraulic disc brakes. Minimal maintenance, no cable adjustment and less pedal force than mechanical cable brakes affords the Workman GTX reliable and consistent stopping power.
Brake System
4 wheel hydraulic disc brakes
Engine
429 cc Kohler® gasoline engine, 429 cc Kohler® EFI gasoline engine, or 48V brushless electric
Front Suspension
Modified MacPherson strut with adjustable coil over shocks
Maximum Speed
16 mph (25.6 km/h)
Payload Capacity
2-seat with bed 1,200 lbs. (544 kg)
Rear Suspension
Articulating swing arm with adjustable coil over shocks
Towing Capacity
1,500 lbs. (680 kg)

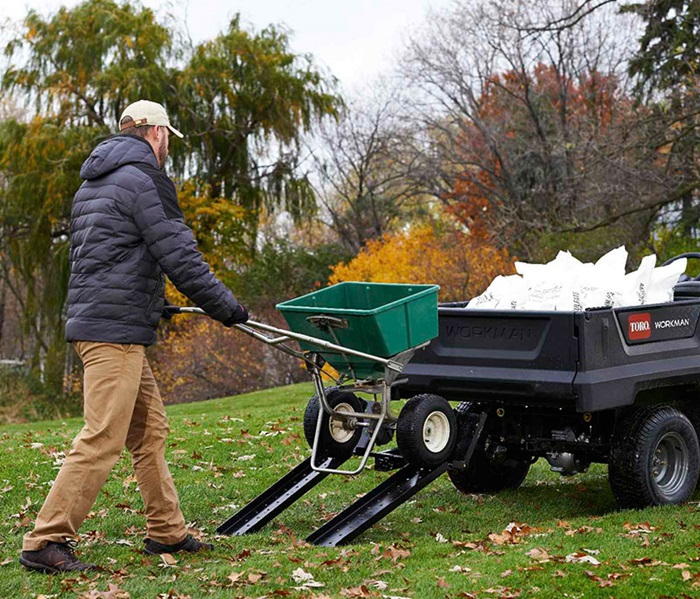

Attachments
Front and rear integrated receivers make securely attaching hose reels, walk spreader or trash cans simple.
Cab
ROPS (Roll Over Protection System) certified cab enclosure features a windshield wiper, sliding driver's door opening and optional lights and mirrors.
Canopy
To keep operators and passengers cool in the sun and dry in the rain, the Workman GTX has a custom canopy made of durable, high density polyethylene.
Extension Kit
Converting the Workman GTX to a four-seat configuration is simple and cost effective when higher seating capacity is required.
Bench Seat
The deluxe bench seat features Elastomeric Vibration Control (ELC) for additional comfort in rough terrain.
Flat Bed
Available in four or six foot lengths, flat beds allow the Workman GTX to haul larger items that would not fit in a traditional bed. Stake pockets are available to build custom sides if desired.
Racking
Save bed space by securing everyday items, like rakes and shovels, to the bed-mounted racking system.
L-Track
Also known as logistic track, L-track is a versatile tie down system of rails and fittings that can be used to secure cargo in, on and outside the bed.
ATV Tires
When conditions require, a more aggressive tread is available to keep you productive.
Electric Bed Lift
A convenient, easy way to unload the cargo bed. Raises and lowers the bed efficiently within the payload capacity.
Brake/Tail/Signal Light Kit
Brake, tail and turning signal lights provide additional awareness to others in your operating environment.
The Workman® MDX Series features the SRQ™ (Superior Ride Quality) system that delivers a more comfortable ride. The SRQ system on the Workman MDX model is made up of an independent A-frame front suspension, a swing-arm rear suspension and an active in-frame twister joint that dynamically connects the front and rear chassis. The Workman MDX Series features a durable plastic cargo bed with a load capacity of 1650 lbs (750 kg).
SRQ™ - Superior Ride Quality
SRQ™ combines a coil-over shock absorber suspension design with the Active In-Frame™ twister joint. Front suspension is Independent A-Frame design with coil-over shock absorbers. Rear suspension is Swing Arm design with coil-over shock absorbers. Benefits include operator comfort, safety, reduced operator fatigue, and productivity and efficiency gains.
Active In-Frame™ Twister Joint
The innovative Active In-Frame™ Twister Joint allows each axle to react independently to the terrain. The result is the smoothest ride over the most undulating surfaces. All four wheels maintain constant contact with the ground for better traction, stability and less potential turf damage.
Operator/Passenger Platform
Extended front frame for additional leg room to enhance SRQ™ benefits of operator and passenger comfort.
Payload Capacity
The Workman® MDX Series utility vehicles have the highest total payload capacities in their class for maximum productivity. Get more jobs done in less time. MDX - 1,650 lbs. (748 kg)
Rugged Body Styling
New rugged injection-molded body styling. Latch opened hood design for ease of access for technicians.
Durable Plastic Cargo Bed
Double-walled composite bed can withstand the elements and heavy loads, and won't rust or dent.
Optional Accessories and Attachments
Canopy, Solid and Folding Windshield, Electric Bed Lift, Brush Guard, Heavy Duty Bumper, ROPS, Brake/Tail/Signal Light Kit, Deluxe Hard Cab, Heavy Duty Tow Hitch, Rear Lift Kit, Snow Plow.
Brake System
Front wheel hydraulic disc. Rear wheel hydraulic drum.
Cargo Bed
Double walled, polyethylene plastic
Engine
600cc Kubota® diesel engine or 480cc Briggs & Stratton® Vanguard® gas engine
Front Suspension
Modified MacPherson strut. Adjustable coil-over shocks.
Maximum Speed
16 mph (25.75 km/h) governed. Optional 20 mph (32 km/h) requires ROPS and seatbelts.
Payload Capacity
1,650 lbs (750 kg)
Rear Suspension
Trailing arm with adjustable coil-over shock absorbers
Frame Suspension
Active-In-Frame™ twister joint, front and rear suspension
Towing Capacity
1,200 lbs (544 kg) with heavy duty hitch
Warranty
2 year limited warranty or 1,500 hour limited warranty
Canopy
To keep operators and passengers cool in the sun and dry in the rain, the Workman MD Series has a custom designed extra-wide canopy with rear moisture drainage outlets. Made of durable, high density polyethylene. Front mounts to steel diamond plate floorboard for added stability.
Folding Windshield
Clear high-impact modified acrylic. Quick and easy fold-down for airflow to enhance operator/passenger comfort. Added flexibility of full protection against elements in fold-up position.
Electric Bed Lift
A convenient, easy way to unload the cargo bed. Raises and lowers the bed efficiently within the payload capacity.
Brush Guard
Heavy-weight thickness tube bumper and guard protects against damage to front body and headlights.
Brake/Tail/Signal Light Kit
Headlights standard. Brake, Tail and Turning Signal Lights are integrated into one optional kit.
Deluxe Hard Cab
ROPS (Roll Over Protection System) and CE certified cab enclosure. Features a vented front windshield for cross ventilation, glass windshield and side panels for increased visibility, and standard automotive latching system for tight seals on doors and windows. Interior dome light and 2-speed windshield wiper.
Receiver Hitch
This optional tow hitch increases the towing capacity of the Workman MDX to 1,200 lbs. (544 kg) The standard tow hitch provides 400 lbs. (181 kg) towing capacity for the Workman MDX.
You can’t get more hauling capacity, versatility, or bang for your utility vehicle buck than you can with a Toro Heavy-Duty Workman. With an I-beam axle that’s seven times stronger than a tubular design, a bed that hauls up to 3,352 pounds (1,520 kg), and an electronic fuel-injected engine that makes every gallon go farther, it’s the highest performing utility vehicle on the market today. With the HDX Auto, training operators how to use a manual transmission is no longer needed.
Payload Capacity
The Workman HDX line of vehicles provides total payload capacity up to 3352 lbs.
DeDion Rear Axle
The DeDion rear axle design is an automotive technology which isolates the engine, transmission and main frame from all load forces, eliminating stress to these main components. The I-beam design provides superior ability to handle vertical loading, exactly the reason I-beams are used extensively in the construction industry.
Disc Brakes
4 wheel hydraulic disc brakes provide greater stopping power and easier servicing than traditional drum brakes.
Four Wheel Drive Traction
Automatic, on demand, bi-directional four wheel drive traction system provides additional traction when needed without operator action.
Front Impact Bumper
A specially designed composite bumper with seven (7) energy absorbing crush zone cones protects the Workman to withstand impacts up to 3 mph (4.8 km/h) under full load with no permanent deformation.
High Performance Engine
Liquid cooled diesel engine provides excellent low end torque and is EPA Tier 4 emmission compliant and B20 biodiesel ready.
Ride Quality
Independent front suspension consisting of two double A-frames with opposing dual coil springs and dual shock absorbers provides 5.75 in. (14.6 cm) of front suspension travel. Rear suspension design consists of a DeDion rear axle and dual independent leaf springs and shock absorbers to provide 3 in. (7.6 cm) of rear travel. Benefits include operator comfort, safety, reduced operator fatigue, productivity and efficiency gains.
Tough Frames
The Workman® front space frame design is multi-dimensional or truss like, providing superior strength and torsional rigidity in rough terrain. The rear frame uses a C-channel design to provide superior strength in hauling heavy loads.
Operator Comfort
In addition to excellent ride quality, the HD Series offers an easy to read instrumentation package, enhanced leg room, a radio / beverage holder, easy to reach controls and a deep storage box.
Versatility
The Workman® can perform a variety of work tasks beyond hauling and towing with attachments such as a 200 Gallon (757 Litre) Sprayer, Vicon® Spreader, 1/3 Vertical Platform Lift, Patriot® Aerial Lift and Topdressers. Numerous accessories enhance versatility including Canopy, Folding Windshield, Various Light Kits, Deluxe Hard Cab, Various Flatbeds, 4-Post ROPS, Automatic Tailgate Release, Rear PTO and others.
Brake System
4 wheel hydraulic disc brakes.
Engine
Kohler® LH775 EFI 28 hp (20.9 kW) gas, Kubota® 972 EFI 32.5 hp (24.2 kW) gas, Kubota 902D 23.3 hp (17.4 kW) diesel, Kohler CH23 23 hp (17.2 kW) gas
Four Wheel Drive
Automatic, on-demand, bi-directional system. (4WD models only*)
Front Suspension
Independent double A-Frames with opposing dual coil springs and dual shock absorbers provides 5.75 in. (14.6 cm) of front suspension travel.
Rear Suspension
DeDion rear axle and dual independent leaf springs and shock absorbers to provide 3 in. (7.6 cm) of rear travel.
Turning Radius
50 degrees
Warranty
2 year limited warranty
Canopy
To keep operators and passengers cool in the sun and dry in the rain, the Workman HD Series has a custom designed extra-wide canopy with rear moisture drainage outlets. Made of durable, high density polyethylene.
Deluxe Hard Cab
ROPS (Roll Over Protection System) and CE certified cab enclosure. Features a vented front windshield for cross ventilation, glass windshield and side panels for increased visibility, and standard automotive latching system for tight seals on doors and windows. Interior dome light and 2-speed windshield wiper.
Folding Windshield
Clear high-impact modified acrylic. Quick and easy fold-down for airflow to enhance operator/passenger comfort. Added flexibility of full protection against elements in fold-up position.
Rear View Mirror Kit
8 ½ in. (21.6 cm) convex mirror with mounting capability on either the operator or passenger side of the vehicle.
4-Post ROPS
Provides operator additional protection in case of roll over.
ROPS Signal Light Kit
Consists of two double amber warning lights and two single red tail lights, all mounted on top ROPS bar.
Work Light Kit
Consists of three work lights for mounting on top ROPS bar. Two lights forward facing and one light rearward facing.
Sprayer, 200 Gallon (757 liter)
The Toro Workman® 200 Gallon (757 liter) Sprayer provides precise applications of herbicides, fungicides, pesticides, or fertilizers. With the easy Toro on/off system, your Workman® utility vehicle is quickly transformed into a highly productive sprayer.
ProPass™ 200 Topdresser
A 21 ft³ (.54 m³) capacity topdresser that delivers extremely consistent spread patterns. An available wireless controller provides an easy method for controlling spread functions.
Topdresser 1800
An 18 cubic foot (.5 cubic metre) topdresser that is durable, flexible and delivers an even rate of application - whether high or low rates of application are required. Also great for spreading sand and salt on sidewalks for ice control.
