Whether natural turf or synthetic, a professional sports field or community / municipal park, or spacing of 60 feet or 170 feet, Toro offers a wide range of rotor products to meet the unique needs and challenges presented by large turf areas.
Considered the most durable, heavy-duty commercial sprinkler available, the 640 Series is the traditional, proven veteran for athletic fields and other large commercial applications. It is equipped with a standard rubber cover and offers a choice from five nozzles and twelve arcs. A variety of models are available including Valve-In-Head, Check-O-Matic and recycled.
35 Years of Reliability
Once the 640 Series sprinkler goes in the ground, it stays there. With a stainless steel-encased nozzle assembly and gear drive design.
Normally Open Valve-In-Head Body
Allows individual head control - the only commercial grade Toro rotor available with this feature.
Stainless Steel, Engineering Plastic and Brass Construction
Provide dependable performance in the most demanding environments.
Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Radius
47'-67' (14.3 - 20.4)
Flow
6.0-25.0 GPM (22.7 - 94.6 LPM)
Arc
Full Circle; Part circle fixed
Recommended Operating Pressure
40-90 PSI (2.8 - 6.2 Bar)
Inlet
1" (2.5 cm)
Pop-Up Height
2 3/8" (6 cm)
Body Height
9" (VIH-10 1/2") (23cm/26.7cm)
Body Diameter
2 1/2" (6.4 cm)
Cap Diameter
3 1/4" (8.3 cm)
Exposed Diameter
1 3/4" (4.4 cm)
The Toro® T7 Rotor is built rugged to withstand the harsh conditions and vandalism present in municipal/government, sports fields and commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. Its extensive customer identified features including a full 5 ¾” pop-up height and large radius make it ideal for sportsfields, parks and other large turf applications. Further enhancing its versatility, the T7 is now also Low-Flow Versions, for smaller radius and lower flow applications, such as baseball infields.
Top Arc Indication
Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45°-360°.
High Efficiency Nozzles
Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.
Vandal and Abuse Resistance
Smart Arc™ memory safely returns sprinkler to previously set arc if vandalized.
Design Solutions and Safety
Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.
Versatility
Available in low-flow models (identified by "circle L" on rubber cover), for short radius (38'-53') applications, such as baseball infields.
Radius
Low-flow models: 38'-53' (11,6 - 16,2m); High-flow models: 46'-83' (14,0 - 25,0m)
Flow
Low-flow models: 1.7-13.0 gpm (6,4-49, 2 lpm); High-flow models: 6.8-30.5 gpm (25,4-116 lpm)
Trajectory
25°
Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One
Recommended Operating Pressure
40-100 PSI (2.8 - 6.9 BAR)
Inlet
1" (2.5 cm)
Pop-Up Height
5" (127 mm)
Body Height
8.8" (224 mm)
Cap Diameter
2.2" (56 mm)
For big open spaces, the Toro TS90 provides unparalleled features and performance into a single fully adjustable rotor. Designed for large turf areas, its radius of 53' to 95' is ideal for parks, sports fields, synthetic turf athletic fields and horse arenas. In addition, Toro patented Trujectory™ allows for the fine tuning of nozzle spray height from 7-30° to ensure wind resistance and head-to head spacing.
Trujectory Adjustment from 7° to 30°
Fine tunes nozzle spray height, helps provide true head-to-head coverage, and compensates for windy conditions.
Part And Full Circle In One
Offers convenience and reduces inventory requirements.
Back Nozzle Capable
Perfect for perimeter of sports fields. Provides the flexibility for fine-tuning any watering requirement.
Three Nozzle Configuration
Provides better distribution uniformity, nozzle flexibility and system efficiency.
Constant-Velocity Drive
Provides reliable rotation speed – from sprinkler to sprinkler.
TurfCup™ For Sports Fields
The TurfCup version seamlessly integrates into either natural grass or artificial turf sports fields, enhancing player safety, surface playability and field aesthetics.
Radius
53'-95' (16 - 29 m)
Flow
14.0-61.5 GPM (53 - 233 LPM)
Trajectory
7°-30°
Arc
Part/Full circle in one
Recommended Operating Pressure
40-100 PSI (2.8 - 6.9 BAR)
Inlet
1" (2.5 cm)
Pop-Up Height
4" (10.2 cm)
Body Height
10" (25.4 cm)
Exposed Diameter
2.2" (5.6 cm)

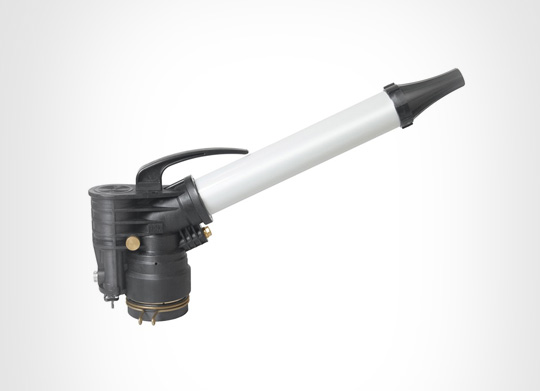

The lightweight and versatile T-P2 Series Sprinklers are capable of achieving radii of up to 226 feet, making them well suited for a wide range of applications, including dust suppression and control, cooling and washdown of synthetic turf, and the distribution of reclaimed water. The T-P2 Series’ fully-enclosed, adjustable-speed piston drive presents smooth and continuous rotation, allowing for the near vibration-free delivery of water. Despite their long-range capability and durable construction, the T-P2 Series weigh in at under 11 pounds, making it light enough to transport by hand, when necessary.
Radius
T-P2S: 105-180 feet / P2M/VAR: 138-226 feet
Flow
T-P2S: 70-267 gallons per minute / P2M/VAR: 131-535 gallons per minute
Trajectory
Nozzle Trajectory: 25°
Arc
Part circle (30°-330°) / Full circle (360°)
Recommended Operating Pressure
T-P2S: 60-115 psi / P2M/VAR: 70-115 psi
Maximum Operating Pressure
120 psi
Run Time
10 hours
Minimum Operating Pressure
60 psi
Inlet
T-P2S: 2 ½” NPT female / P2M/VAR: 3” NPT female
Weight
T-P2S: 9.5 pounds / P2M/VAR: 10.8 pounds
Dimensions
T-P2S: 15.2” H x 21.3” L / P2M/VAR: 17.4” H x 26.3” L

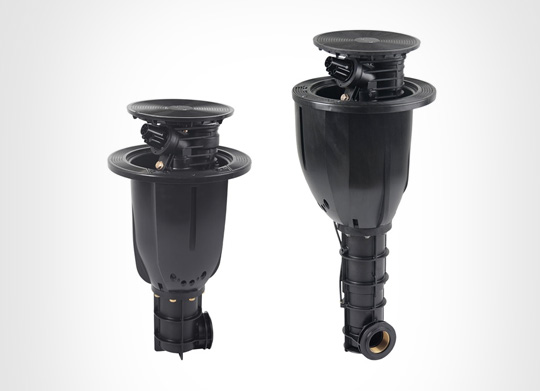

The piston-driven Toro TS170 Series long radius rotor is the irrigation solution of choice for the cooling and washing down of large synthetic turf fields. Capable of achieving a throw of 177 feet, the TS170 Series Rotor can be installed along the outer perimeter of the playing surface, which helps preserve player safety and maintain field aesthetics.
Radius
111-177 feet
Flow
Output Flow: 113-303 gallons per minute
Trajectory
25°
Arc
Part circle (30°-330°) / Full circle (360°)
Recommended Operating Pressure
100 psi
Maximum Operating Pressure
145 psi
Minimum Operating Pressure
60 psi
Inlet
2” NPT Female
Pop-Up Height
4.7”
Weight
23 pounds (Block Style model) / 26 pounds (VIH model)
Cap Diameter
10.1”
Operating Pressure
100 psi
Dimensions
20.8” H x 13.75” W (Block Style model) / 26.8” H x 13.75” W (VIH model)
Pattern
Speed of Rotation (180° arc): 50-120 seconds

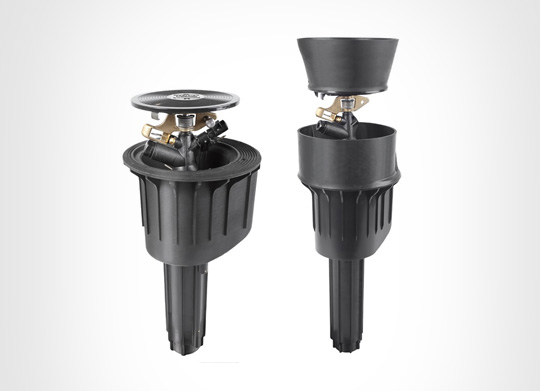

The TS120 Series Impact Sprinkler is capable of achieving long-range throws of up to 125 feet, making it well suited to meet the needs of both Synthetic and natural Turf sports fields. Available in Part Circle and Full Circle models, the TS120 can be configured with a factory-installed 4” TurfCup™ that helps to seamlessly blend the sprinkler into natural Turf surfaces and preserve field aesthetics. Combining a wide assortment of Nozzle options with low maintenance requirements and heavy-duty construction, the TS120 Series Impact Sprinkler is well positioned to help you preserve everything that makes your field unique.
Radius
62-125 feet
Flow
20-121 gallons per minute
Trajectory
22°
Arc
Part Circle (30°-330°) / Full Circle (360°)
Recommended Operating Pressure
45-120psi
Maximum Operating Pressure
145 psi
Minimum Operating Pressure
45 psi
Inlet
1½” NPT female
Pop-Up Height
4” (Standard) / 8.1” (with TurfCup) measured from grade to top of lid
Operating Pressure
45-120psi
Dimensions
14.8” H x 10.1” W (Block Style model) / 17.9” H x 10.1” W (VIH model) / 26.0” H x 10.1” W (VIH with TurfCup models)
Pattern
Speed of Rotation: (360°): 60 seconds

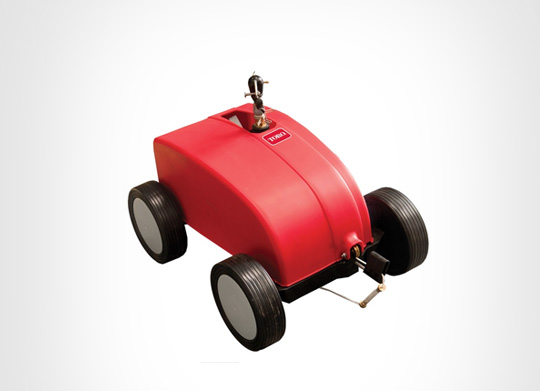

The Toro RollcarT™ offers a cost-effective, easy-to-setup solution for irrigating sports fields, golf course roughs, and other large, open turf areas where an underground irrigation system is not installed or impractical. The RollcarT is hydraulically powered and travels the length of the field while applying consistent irrigation through the top-mount long radius impact sprinkler. The RollcarT travels along its integrated high-strength guide cable, and automatically shuts off the flow of water once it has reached the end of the line.
Radius
52-64 feet
Flow
11-20 gallons per minute
Arc
Part circle (30°-330°) / Full circle (360°)
Recommended Operating Pressure
65 psi
Maximum Operating Pressure
100 psi
Minimum Operating Pressure
50 psi
Inlet
1” (Quick Coupling)
Weight
60 pounds
Cap Diameter
10.1”
Operating Pressure
65 psi
Dimensions
30” long x 18” wide x 16” tall
